NEU-NBNC75BFG7

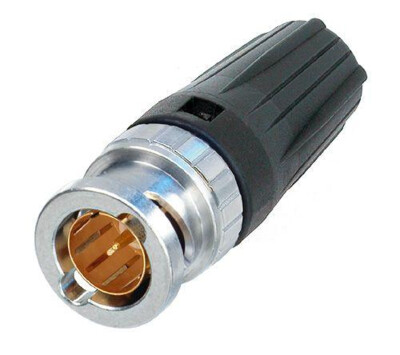

Neutrik – NBNC75BFG7 – Suits Belden 1855ENH – Nokia 0.6/2.8AF – Cord CVI06-28 e

$730.00 RRP Inc GST

Quantity

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra

Crimp size:
Pin: 1.6 mm (square)
Shield: 5.0 mm (hex)

Features & Benefits

  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies
