NAUSB3

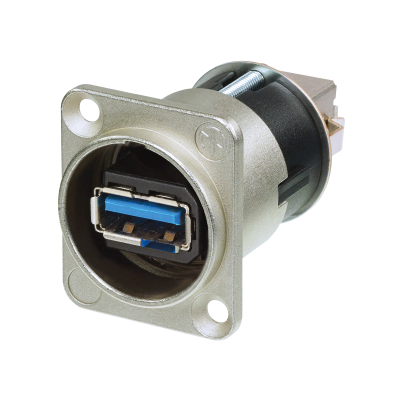

Reversible USB 3.0 gender changer (type A and B), Nickel D-housing

The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.

FEATURES & BENEFITS

• USB 3.0 feedthrough adapter
• Reversible insert offering type A or B on front or rear end
• Standard D-shape housing
• Removable screen for chassis grounding
• Meets USB 3.0 specifications

Gender Changeable

Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.

USB typ A in front USB Typ B in front

Optimized Ground Connection

An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.

Cable lengths

To ensure an error-free data transmission it is essential to use an appropriate cable with correct length. The table below lists the maximum cable length according to the wire gauge (AWG) of the used USB 3.0 cable.

Wire gauge – Cable length
AWG 22       – 1.75 m
AWG 24       – 1.0 m
AWG 26       – 0.6 m
AWG 28       – 0.35 m
