MSCM12

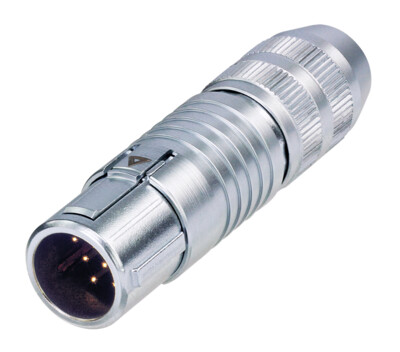

12 pole male cable connector, chuck type strain relief, solder contacts

The miniCON with its flexible and compact design is perfectly suitable for multipin/industrial applications. The rugged all metal miniature connector offers a push-pull locking device and stands out by an excellent cost/performance ratio.

Features & Benefits

• Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts.
• Velour chromium housing
• Push-pull self-locking system
• Rugged, precisely machined all metal design
• Gold plated contacts



Product

Title

• MSCM12

Connection Type

• miniCON

Gender

• male

Electrical

Contact resistance

• ≤ 8 mΩ

Dielectric strength

• 1 kVdc

Insulation resistance

• > 0.5 GΩ

Rated current per contact

• 3 A

Rated voltage

• < 50 V

Mechanical

Cable O.D.

• 3 – 5 mm (grey chuck), 5 – 7 mm (white chuck)

Cable retention

• > 20 N

Insertion force

• < 25 N

Wiresize

• 0,5 mm²

Wiresize

• 20 AWG

Wiring

• Solder contacts

Locking device

• Push-Pull

Material

Contact plating

• 0.2 µm AuCo

Contacts

• Brass (CuZn35Pb2)

Insert

• Polyamide (PA 6.6)

Shell

• Zinc diecast / Brass (ZnAl4Cu1 / CuZn39Pb3)

Strain relief

• Polyacetal (POM)

Environmental

Flammability

• UL 94 V-0

Protection class

• IP 5X

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C
