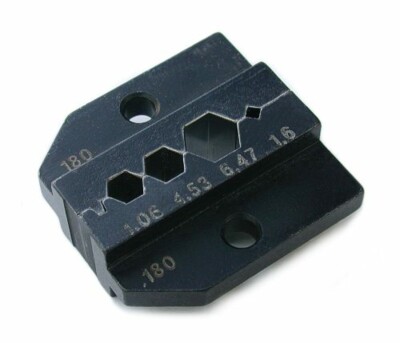

DIE-R-BNC-PDC

Crimp tool die for HX-R-BNC

Pin crimping: 1.60 mm
Shield and jacket: HEX crimp 6.47 mm (A), 4.53 mm (B), 4.06 mm (C)

Product

• DIE-R-BNC-PDC

Mechanical
Crimp size

• 4.06, 4.53, 6.47 Hex crimp (shield) acc. MIL22520/5-39(B), IEC 60803 (die designation C, E)

Crimp size (pin)

• 1.6 Square crimp (pin) acc. IEC 60803 (die designation 2)
