Mipro

MIP-MA808PAMB-5

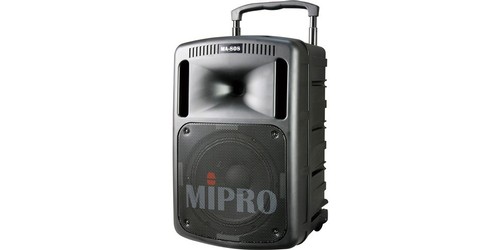

Mipro – MA808PAMB-5 – Portable PA System – 265 Watt – XLR – 6.35mm RCA Inputs – 5B Receiver

$3,735.00 RRP Inc GST

Quantity

MIPRO MA808PAMB5

Mipro MA808PAMB-5 (267W RMS, 456W Peak) 10″ Woofer, 1.5″ Tweeter PA with B/Tooth and wireless receiver..



Description



Mipro MA808PAMB5 PA System is MIPRO’s flagship portable wireless PA system and brings a host of impressive features and functionalities. MA808PAMB5 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D/AB amplifiers that drive high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. It offers an ideal public address solution for large crowds.

Mipro MA808PAMB5 PA System, 267 Watts Peak with built in Bluetooth, wireless receiver module, 1.5″ tweeter and 10″ neodymium woofer speakers, Integrated dual gel cell batteries. XLR and 6.35mm Mic Inputs, Single RCA Line Input, Single RCA Line Output. Retractable handle and wheels for easy transportation. Use on a table or speaker stand.

Can be optioned with up to to a total of four wireless microphones with MRM70B-5 single receiver or a MRM72B-5 dual wireless receiver module, and CDM2 CD/USB Player Module. Wireless interlinking  option also available for linking multiple MA808 Portable PA Systems to expand coverage.

Mipro MA808 Models Available:
MA808PA-Base model with corded microphone only. Includes Bluetooth.
MA808PAMB5-Includes 1 x wireless receiver module (MRM70B). Includes Bluetooth.
MA808CDMB-Includes wireless receiver module (MRM70B) and a CD/USB/MP3/ Player Module. Includes Bluetooth.

Ideal applications include:

  • School sports events and marching bands
  • Places of worship
  • Large meetings and public gatherings
  • Presentations, seminars and meetings
  • Shopping center presentations and promotions
  • Aerobic & fitness centers
  • Parades & fetes
  • Street performers
  • Park and recreational facilities
  • Emergency and rescue situations
  • Weddings & funeral services
  • Public auctions

Package Includes: The price listed here is for the Mipro MA808PAMB5 which includes the MRM70B Receiver Module.

Options Available:
Use with ACT32H-5 (Handheld Wireless Microphone) or ACT32T-5 (Beltpack Transmitter)
CD/USB/MP3 Player module
DPM3- USB/SD Audio Player/Recorder Module.
Use with up to 4 wireless receivers
Wireless interlinking option available



Features

  • Robust, rugged enclosure, built-in class D & AB amplifiers system with 10″ woofer and 1.5″ tweeter.
  • Option- Use with up to four wireless receivers
  • Option- CD/USB/MP3 Audio Player module
  • Bluetooth receiver for music streaming.
  • Voice Priority mutes music when a wireless mic is used.
  • Echo effect for richer-sounding vocals.
  • Industry’s only Master volume with “Memory” and “Standard” mode options. “Memory” mode saves and recalls last volume level during next power on. “Standard” mode resets to zero level.
  • Master volume
  • Retractable handle and rugged wheels make it amazingly easy to transport.
  • Built-in storage compartment for 2 handhelds or bodypack transmitters.
  • Wirelessly link 2 or more MA-808 systems for more sonic coverage (industry’s only MTM-92 transmitter module is required).
  • Active limiter prevents speaker damage from loud signal spikes.
  • Can be powered via AC power, battery or direct DC.
  • Suitable for tripod, floor or desk mount.



Specifications

Max. Power Output 267 W RMS: 190W (woofer)|77W (tweeter)
Amplifier Class D & Class AB
Sensitivity Typical: 96 dB | Maximum: 111 dB
T.H.D. < 1%
Frequency Response 50 Hz ~ 18 kHz
Speaker 1 ” Tweeter & 10 ” Woofer
Audio Inputs Wired: XLR × 1, Ø 6.3 mm (1/4 “) × 1
Wireless: Up to 4 wireless microphones
Audio Player: CDM-2︱DPM-3
Line-In: Unbalanced RCA jack
Bluetooth Connectivity Yes
Audio Output Unbalanced line RCA jack
Extension Speaker Speaker output
Master Volume Control Manually
Controls Tone, Voice Priority & Echo on wireless mics
Storage 2 handheld or bodypack transmitters
Installation Speaker stand, flat surface or retractable handle & wheels
Power Supply AC: Built-in 100 ~ 240 V AC switching power supply (Max. Power Consumption: 352 W)
DC & Battery: 24 ~ 32 V DC, 12 V / 4.5 AH rechargeable gel cell battery (MB-70 × 2) or optional MB-80 × 2
Charge Time 8 hours (automatic charging management)
Stand-by Time > 6 hours
Battery Indicator 4-level indicator (25/50/75/100%)
Color Black
Dimensions (W × H × D) 360 × 560 × 350 mm / 14.2 × 22 × 13.8 “
Weight Approx. 20.5 kg / 45 lbs (MB-70 batteries included)
Wireless System (optional)
Receiver 1 or 2 MRM-70B︱MRM72B (Dual Receiver)
Max. Receiver Up to 4
Frequency Range See MRM70 /MRM72
Preset Channels & Bandwidth See Accessories – Receiver Modules
Transmitters See Accessories –
Microphones MM-107 -Optional
Interlinking Transmitter MTM-92 – Optional
Installation Plug-in Module
Antenna Built-in active dual antennas
Audio Player (optional)
Model CDM-2 | DPM-3
Installation Plug-in Module
