Mipro

MIP-MA505DPM3

Mipro – MA505DPM3 – Portable PA System – 100 Watt – Bluetooth DPM3/USB/SD Player

$2,089.00 RRP Inc GST

Quantity

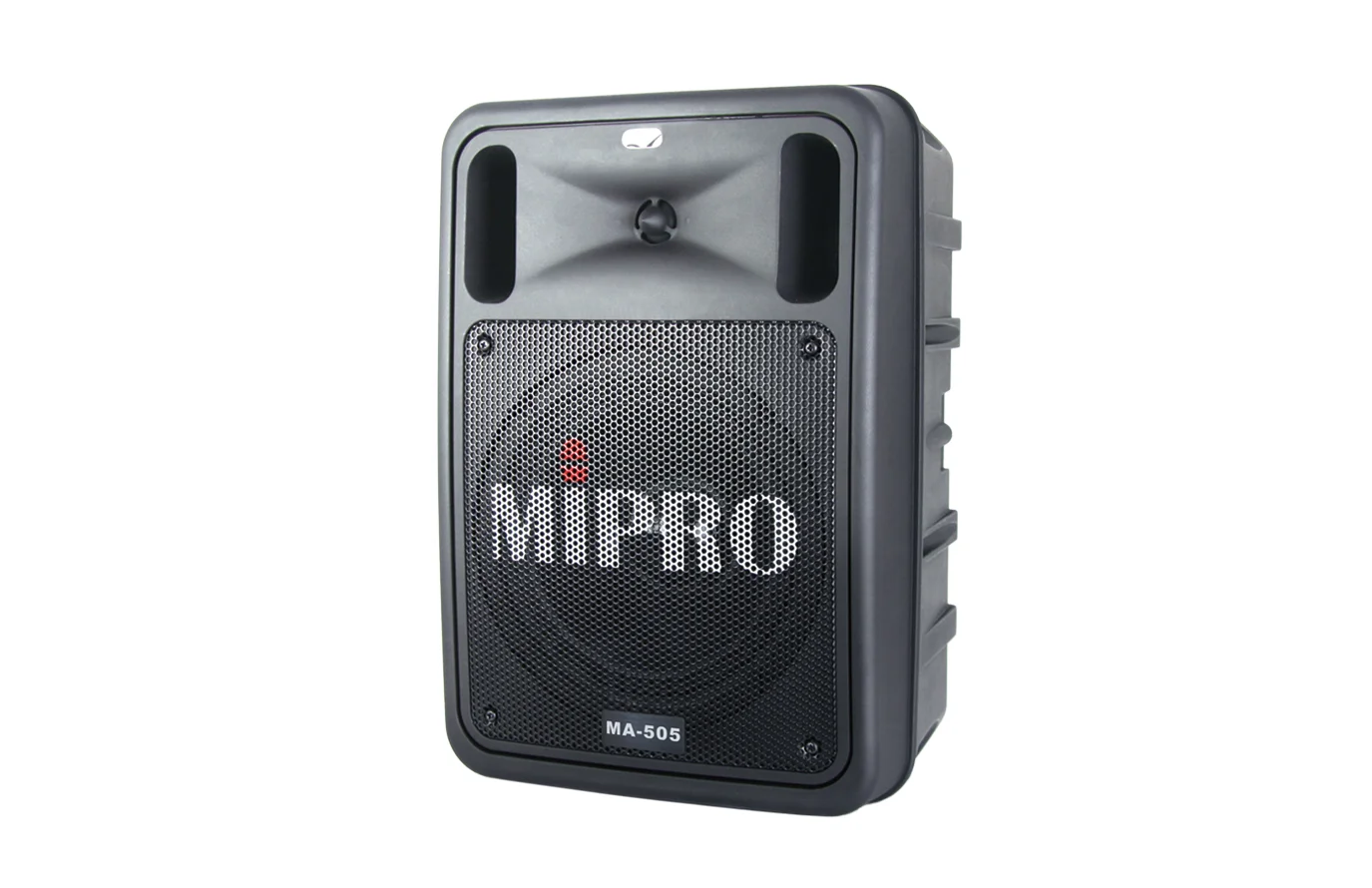

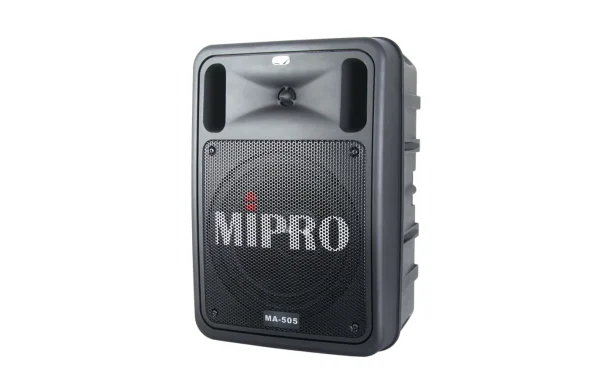

MIPRO MA505DPM3

MA505DPM3 (145W RMS, 248W Peak) 8″Woofer, 1″ Tweeter, B/Tooth, USB/SD player, corded microphone and Lithium battery.



Description



Mipro MA505DPM3 PA System delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. Every Mipro MA505DPM3 PA System has on board Bluetooth allowing you the flexibility to stream music from phone or computer. Can be optioned with up to two wireless receiver modules or MT91 interlink transmitter, or DPM3 USB/SD Player recorder, or CD/USB Player module. It offers an ideal public address solution for medium crowds.

Ideal Applications

  • School classrooms & halls
  • Places of worship
  • Presentations, seminars and meetings
  • Day-care activities; playground duty
  • Indoor/outdoor gatherings
  • Weddings & funeral services
  • Shopping center & trade show presentations and promotions
  • Street performers
  • Aerobic and fitness centers
  • Recreational and social activities

Models Available.
MA505PA: Base unit featuring Bluetooth for music streaming. Use with up to two wireless receiver modules-MRM70B
MA505DPM3: USB/SD player recorder and Bluetooth for music streaming. Use with up to two wireless receiver modules-MRM70B
MA505R2DPM3: USB/SD player recorder and Bluetooth for music streaming with two built in receivers.

Package Includes: The price listed here is for the Mipro MA505DPM3 with corded microphone.

Options Available:
Use with up to two wireless receiver modules- MRM70B and any combination of ACT32H-5 (Handheld Wireless Microphone) or ACT32T-5 (Beltpack Transmitter)



Features

  • 145 watts RMS Audio Output (248 watts Max)
  • 8″ woofer paired with 1″ horn
  • Built-in licensed Bluetooth music player for wireless audio streaming
  • USB/SD Player
  • Optional CD/MP3 player
  • 8.5 kilos in weight
  • Lithium rechargeable battery and AC mode
  • Up to 8hrs standby time per 4-hour full charge
  • Built-in or detachable receiver module option
  • A voice priority feature that mutes the music when wireless microphone is used
  • Built-in one-button alarm/siren for warning of threats
  • A smart 4-segment battery meter for accurate battery reading and charging status
  • Industry’s only MT-91 wireless interlinking transmitter option to
    interlink multiple MA-505 portables wirelessly to extend transmission range and expand coverage.
  • Built-in cable storage compartment
  • Can be tripod mounted
  • 2yr warranty



Specifications



Power Output 145Watts (rms) / 4Ω, 248Watts (max) / 4Ω
Amplifier Class D
Sensitivity Typical: 91 dB | Maximum: 109 dB
T.H.D. < 1%
Frequency Response 50 Hz ~ 18 kHz
Speaker 1 ” Tweeter & 8 ” Woofer
Coverage H 130° × V 90°
Audio Inputs Wired: XLR × 1, Ø 6.3 mm (1/4 “) × 1
Wireless: Up to 4. 2 Built-in & 2 External Detachable
Audio Player: CDM-2︱DPM-3
Line-In: Ø 3.5 mm (1/8 “) mini-jack
Bluetooth Connectivity Yes
Audio Output Ø 3.5 mm (1/8 “) mini-jack
Extension Speaker Unbalanced Ø 6.3 mm (1/4 “) jack
Volume Individual volume control
Controls Voice priority, Tone or optional Echo control
Alarm Siren Siren sound with fade-in mode
Storage For AC power cable
Installation Hand carry, Flat surface or on a speaker stand.
Power Supply AC: Built-in 100 ~ 240 V AC switching power supply (Max. Power Consumption: 165 W)
DC & Battery: External DC connector. Built-in 22.2 V /4.5 AH rechargeable lithium (MB-35 × 1)
Charge Time 4 hours (automatic charging management)
Standby Time > 8 hours
Battery Indicator 4-level LED indicator (25/50/75/100%)
Color Black
Dimensions (W × H × D) 275 × 400 × 225 mm / 10.8 × 15.7 × 8.9 “
Weight Approx. 8.5 kg / 18.7 lbs (MB-35 battery included)
Wireless System (optional)
Built-in Fixed Receivers 2 (See MA505R2DPM3)
Detachable Module Receiver 1 or 2 MRM-70B
Frequency Range
Preset Channels & Bandwidth
Transmitters See Accessories
Microphones MM-107
Interlinking Transmitter MT-91 module
Installation Plug-n-play for optional modules
Antenna Built-in active high efficiency dual antenna
