5,000 Watt Amplifier with 4 Flexible Output Channels, Lake Digital Signal Processing and Digital Audio Networking for Touring Application
- 5,000 Watt amplifier with 4 flexible output channels and up to 2,000 Watts channel output for touring applications
- Lake digital signal processing for unparalleled loudspeaker management and system control
- Integrated 8×8 channels of dual redundant Dante digital audio networking with AES67 support
- 4 x 900 Watts into 2 Ohms, 4 x 1,250 Watts into 2.67 Ohms, 4 x 1,250 Watts into 4 Ohms, 4 x 1,250 Watts into 8 Ohms, 4 x 700 Watts into 16 Ohms
- Proven and reliable IDEEA output stage with high-efficiency cooling system
- Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels
- Best-in-class Power Factor Correction (PFC) with Current Draw Modeling reduces running costs and minimizes environmental impact
- Under-Voltage Limiting (UVL) for continued operation during severe mains supply voltage drops
- Dedicated on-board surveillance and load monitoring for complete peace of mind
- Redundant audio inputs and on-board system surveillance for full system security
- Backlit, white-on-black front panel display and menu navigation buttons
- 100 user presets for simple and efficient system configuration and set-up
- Front-to-rear airflow fans with temperature control for optimal speed and reduced noise
- 4 “Lake Class” analog input channels with Iso-Float ground isolation
- 4 input channels of AES/EBU (AES3) digital audio supporting all standard sample rates up to 192 kHz with 24-bit resolution

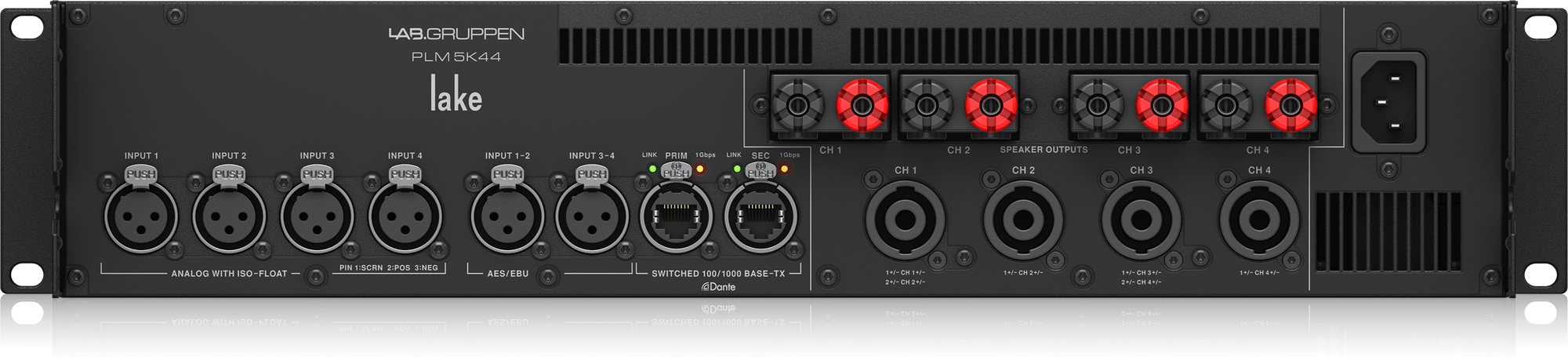

- 2 Neutrik etherCON RJ-45 ports provide dual redundant Dante interfaces and remote configuration via Lake Controller and Dante Controller software
- Balanced analog and AES/EBU audio inputs on Neutrik XLR connectors
- 4 NL4 Neutrik speakON and 4 binding post output connectors
- Detachable locking IEC cable rated at 250 V / 15 Amp
- Removable dust filter grilles for increased air circulation
- Rugged 2U rackmount chassis for durability in touring applications
PLM+ SERIES PLM 5K44
Building on the best-selling PLM+ Series, the PLM 5K44 offers up to 4 x 1,250 Watts output power, a multitude of processing power, and a host of additional features designed to provide real world benefits – all at a price point that makes owning them more affordable than ever. Features such as: LAKE Digital Signal Processing; Dante Digital Audio Networking; plus a touring technology first – Rational Power Management (RPM), a proprietary innovation that rationalises power allocation between channels for optimised performance. As with previous generations, the PLM 5K44 provides redundant audio inputs and load monitoring, plus the multi-channel performance that adds flexibility across the user’s entire loudspeaker inventory. The PLM 5K44 makes any production lifecycle easier to specify, smoother to run, and more efficient to control and monitor at the system design stage, during the show – and right through to final load out.
Four Channels – 5,000 Watts
The PLM 5K44 power amplifier packs 5,000 Watts: 4 x 900 Watts @ 2 Ohms; 4 x 1,250 Watts @ 2.67 Ohms; 4 x 1,250 Watts @ 4 Ohms;
4 x 1,250 Watts @ 8 Ohms, 4 x 700 Watts @ 16 Ohms, into a lightweight (25.1 lbs / 11.4 kg), 2U rack-mountable chassis. Plus, the built-in LAKE DSP ensures the ultimate signal integrity across an extremely broad dynamic range (> 112 dB). PLM 5K44’s proven and reliable IDEEA output stage accompanied with an advanced power supply that provides best-in-class Power Factor Correction (PFC) with Current Draw Modeling, reducing running costs and minimising environmental impact.
Legendary LAKE DSP
The onboard, full-featured LAKE processor provides virtually-effortless group control via its Raised Cosine MESA EQ asymmetric filters – so it can match the response of virtually any loudspeaker system. The included LAKE Controller software provides a unified interface for control and comprehensive monitoring of both amplifier status and connected loudspeaker loads. Optimized for a wireless tablet PC, LAKE Controller is easy and intuitive to operate, with the “feel” of real-time analog faders and controls. LAKE processing also offers classical crossovers (selectable up to 48 dB per octave), FIR (finite impulse response), as well as linear-phase crossovers that are capable of slopes exceeding 180 dB per octave for even greater control.
