Amplifiers

LAB-LUCIA2402M

Lab Gruppen – LUCIA2402M Amplifier – DSP – 2 x 120 Watt 8 – 4- 2 Ohms

$1,199.00 RRP Inc GST

Quantity

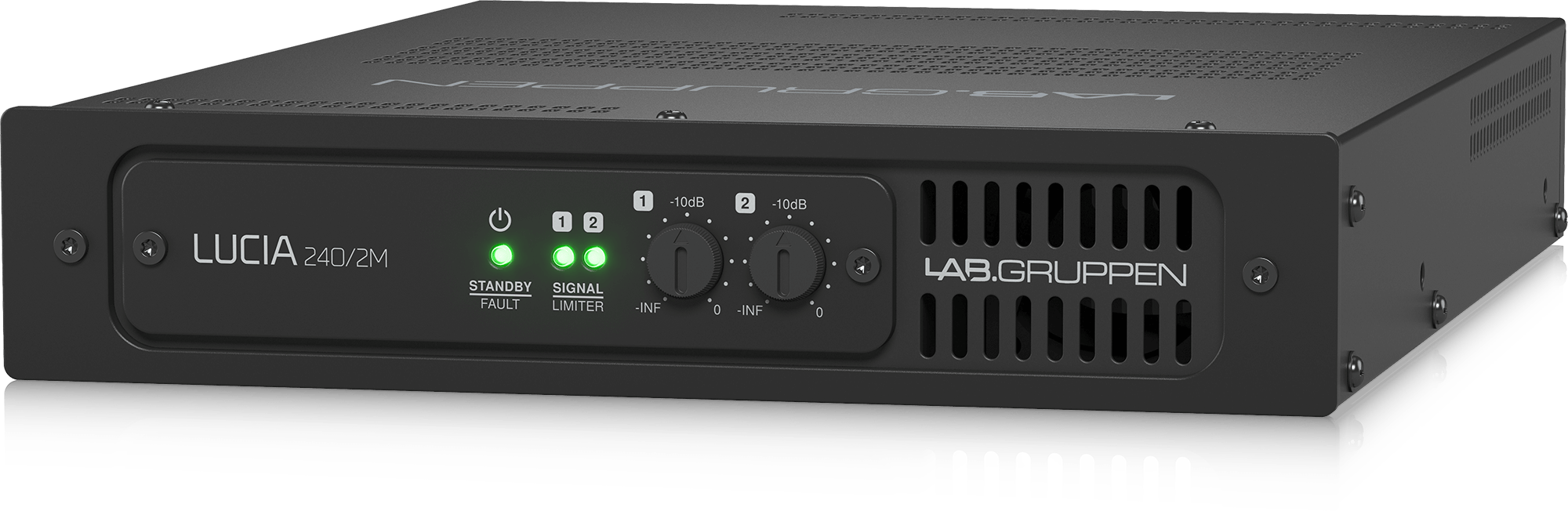

LUCIA 240/2M

Compact 2 x 120 Watt Matrix Amplifier for Installation Applications

Product Features

  • Compact matrix amplifier which offers full output power across a range of loads with 2 x 120 W into 8, 4 or 2 Ohms
  • Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
  • 4 x 4 matrix allows mixing and routing all inputs to amplifier output channels and 2 balanced line level outputs
  • Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows and Mac
  • Energy efficient with Energy Star certification for supreme green credentials and exceptionally low lifetime running costs
  • Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
  • Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
  • Optimized presets available for a wide range of loudspeaker models for fast configuration
  • Enhanced Bass Profile for extended LF response with small loudspeakers
  • Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
  • Efficient Class D amplifier with patented design for low distortion and minimal heat dissipation
  • Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
  • Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
  • Comprehensive circuit protection for fail safe operation, including short circuit, thermal and undervoltage protection
  • Universal power supply supports 100 – 240 V AC at 50 or 60 Hz
  • Intelligent fan control for silent operation at idle and at lower output levels

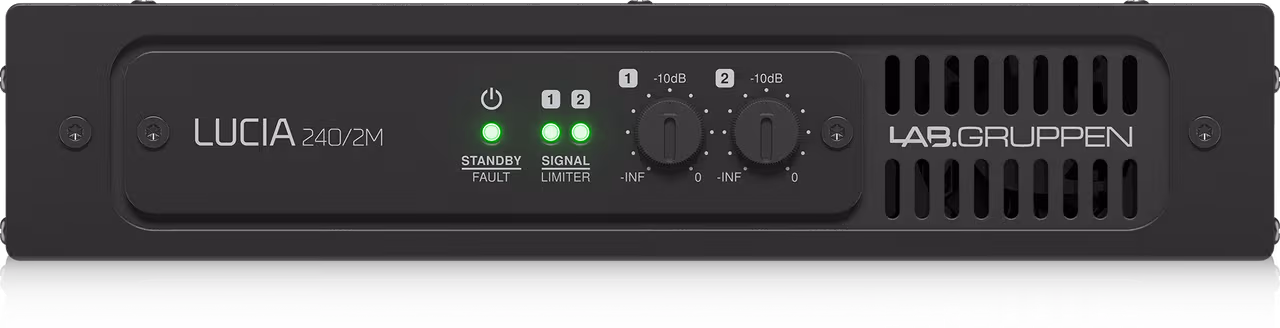

  • Front panel power and fault indication as well as per-channel signal LED and attenuation knob

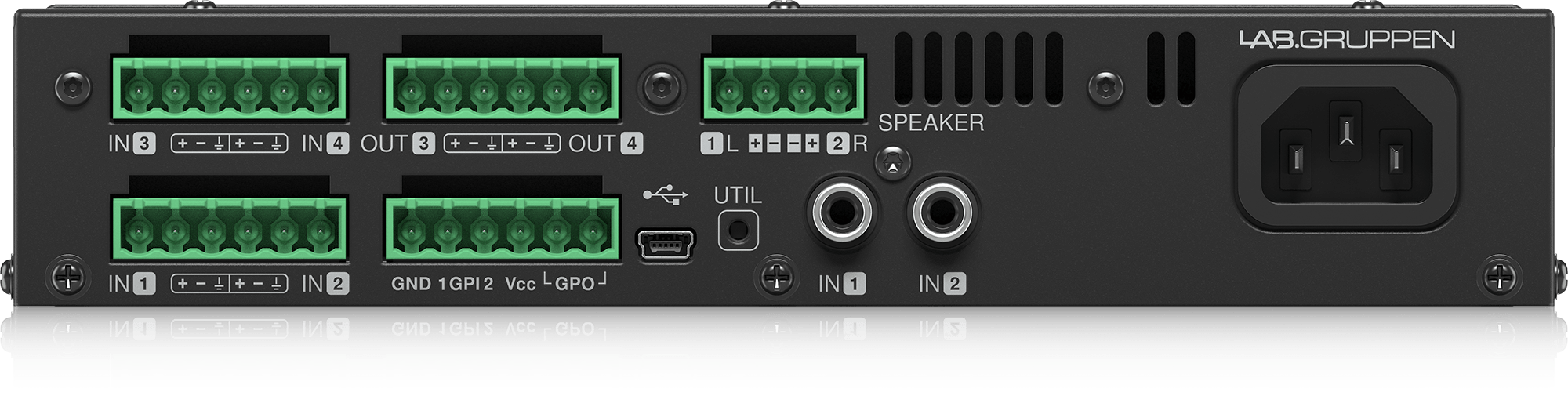

  • Balanced high quality analog inputs and amplifier outputs on detachable screw terminals
  • Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
  • Rackmount kit, pole-mount kit and wall panel kits available as accessories
LUCIA 240/2M
LUCIA 240/2M

LUCIA 240/2M Incorporates Ease of Install with 2 X 120 W of Decentralized Power in a Compact, Energy Star Compliant Amplifier.

Great Sound, Flexibility and Ease of Use
Great Sound, Flexibility and Ease of Use

Lab Gruppen’s innovative LUCIA (Localized Utility Compact Intelligent Amplification) brings superior audio performance and extraordinary flexibility to a decentralized approach in AV systems design. Power, processing, control and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistently outstanding performance, LUCIA offers a logical, cost-efficient and scalable solution that often eliminates the complications and added expense of a centralized equipment room. LUCIA amplifiers incorporate a digital, firmware-controlled front end coupled to a robust, durable and highly efficient Lab Gruppen output stage, all of which make LUCIA the best-sounding and most reliable compact amplifier in its category.

Fits in Anywhere
Fits in Anywhere

LUCIA 240/2M has been designed and engineered for quick installation and easy setup. The supplied wall-mount bracket enables discreet on-wall location (such as behind video displays), but the ultra-compact form factor also allows easy placement virtually anyplace – whether next to a projector or integrated into a reception counter, podium & lectern or bar area. All input and output connections are on Euroblock screw terminals (with parallel unbalanced RCA connectors), and level setting is available on front-panel potentiometers. Advanced circuitry protects the amplifier and connected loudspeakers from potential damage caused by clipping, thermal overload, or extreme low line voltage.

SKU LAB-LUCIA2402M Categories , , , ,
