Amplifiers

LAB-FAD602

Lab Gruppen – FAD602 – Amplifier 2 x 60 Watt – 4/8 Ohm – 70/100 Volt c/w Wall – Rack Mount Brackets

$1,199.00 RRP Inc GST

FAD602

2 x 60 Watt Commercial Amplifier with Direct Drive Technology, Dante Networking and Energy Star Certification

2 x 60 Watt amplifier for commercial and industrial applications
Low-Z (4/8 Ohm) and High-Z (70/100 V) operation per output with switchable high-pass filter
Direct drive, constant power technology for superior audio performance and reliability
Dante audio connectivity to enable creating large audio systems over a local network
Energy Star certified design conserves energy and drastically reduces operational cost
GPI remote volume control using standard RJ-45 connector and Ethernet cable
Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
Tamperproof gain controls for each channel on rear panel location
Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
Euroblock type amplifier output connectors
Convection-cooled, fan-less amplifier technology for low noise
Comprehensive fail safe circuit protection ensures continued operation

__________________________________________________________________

Lab Gruppen – FAD Series – Quick Start Guide

____________________________________________________

FAD602

2 x 60 Watt dual-channel Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. FAD602 is easy to install and operate – even for non-technical personnel. Simply put, the FAD602 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Dante * Audio Connectivity

Dante replaces point-to-point analog and digital connections with a standard IP network that delivers completely lossless audio, massive channel counts and near infinite signal routing flexibility, all while being incredibly easy to deploy and use.

Dante Domain Manager is network management software that enables user authentication, role-based security and audit capabilities for Dante networks, while allowing seamless expansion of Dante systems over any network infrastructure.

The FAD602 is DDM ready.

Energy Star * Certified

Not only does FAD602’s direct drive constant power technology provide superior audio performance and reliability, it also consumes less mains power than competing models, which has earned it Energy Star * certification.

This amazing technology makes it possible to design and build powerful amplifier systems that not only save money on the electrical bill, but also reduce the requirements and cost at the installation for the mains supply. In fact, it is likely that installation can be done utilizing the in-place mains infrastructure. This adds up to significant installation and operational savings and protects the environment.

Easy to Install

The FAD602 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19″ rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.

Automatic Power On/Off

The FAD602 has a flexible power scheme with seamless and automatic power on/off based on the input signal, which reduces consumption when a signal is not present. With virtually zero configuration required, an energy smart and hassle-free amplifier system can easily be set up for hands-off operation. If the FAD602 is powered on but does not receive an input signal for 20 minutes, the system automatically enters sleep mode to reduce power consumption. As soon as the Auto Ramp circuit detects a signal, the system powers on and normal operation resumes. The amplifier can also be instantly forced into standby mode or awakened via the front panel power button.

Tamperproof Gain Controls

FAD602’s input gain controls are placed on the rear panel for tamperproof operation. Available for adjustment – but require a tool when making changes.

Easy to Hook Up

For connecting a balanced source such as a mixer or audio processor, a standard 3-pin Euroblock Input socket is provided. Loudspeaker Output is provided in the form of a standard 2-pin Euroblock socket.

Output Configuration

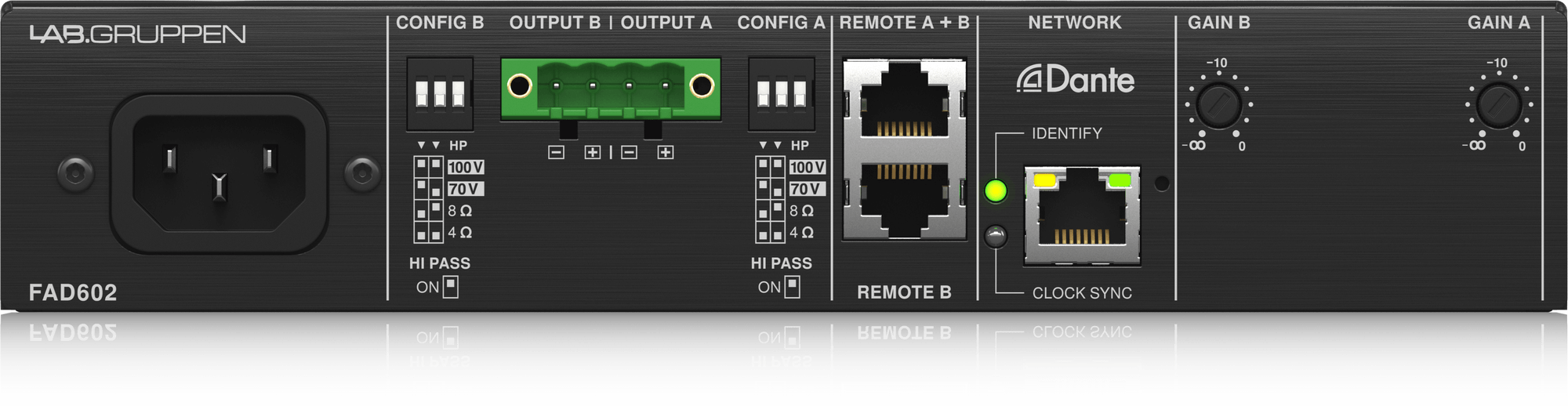

Intuitive configuration of the flexible output channels is provided directly adjacent to the rear panel Euroblock output connector with dipswitches, which allow selection of 100 V, 70 V, 8 Ω, or 4 Ω operation. This configures both the maximum voltage of the output and the gain through the device. An individual control engages the built-in high-pass filter, which should be used on all constant voltage systems to avoid saturation on transformer-enabled loudspeakers and to help maintain sound integrity.

Expandable Remote Control

The RJ45 receptacle on the rear panel opens up a broad range of remote control options, including the CRC-V Series of wall controllers and a stylish tabletop controller, the LAB.LEVEL. All can be interconnected via inexpensive and readily-available Ethernet cabling.

System Scalability

Commercial installs vary widely in scope and often grow and change over time. The FAD602 is part of a family of products that provides both single and dual zone products that are perfect for building out a system to any size. With its individual zone volume and remote control capabilities, the FAD602 is an ideal building block for a dynamic and scalable system solution.

Real-World Energy Savings

The FAD602 2 X 60Watt Commercial Amplifier makes it easy to bring highest-quality music and announcements to business and industrial environments in an easy to integrate – and even easier to operate system. Plus, with features such as its Auto Ramp and revolutionary direct drive constant power technology, the Energy Star certified FAD602 can generate enough energy savings to pay for itself in virtually no time at all.

SKU LAB-FAD602 Categories Amplifiers, Audio Visual, Brands, Lab Gruppen, Lab Gruppen
