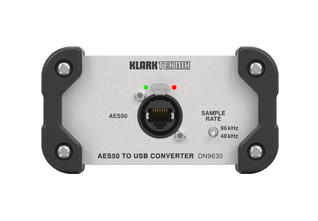

KLA-DN9630

DN9630

The DN9630 greatly simplifies the connection of computers to AES50 audio networks to provide simultaneous multi-channel computer audio recording and playback, making it ideal for use with MIDAS digital consoles and other AES50 equipped products. The single USB 2.0 interface connects directly to a Windows * PC or Apple * Mac and features a very high channel count, offering up to 48 bidirectional channels at 48 kHz and 24 bidirectional channels at 96 kHz sample rates.

Digital Audio Networking

Our SuperMAC (AES50-Compliant) digital audio networking technology simultaneously provides: high channel counts; ultra low and deterministic latencies; sample-synchronous and phase-aligned networked clock distribution; error detection and correction; network redundancy; and ease of deployment and use – to meet the demanding requirements of live concert touring. The DN9630 is fully compatible with all MIDAS digital consoles, audio system engines, digital I/O units, as well as all other AES50-equipped devices.

Dual Sample Rate Support

A dedicated slide switch is provided for either 48 or 96 kHz sample rates, allowing the DN9630 to work with either AES50 network’s incoming source clock for flawless synchronization.
