KLA-DN32LIVE

DN32-LIVE

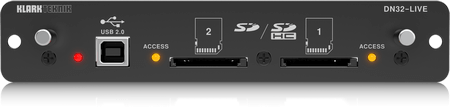

The DN32-LIVE SD/SDHC and USB 2.0 Expansion Module for MIDAS M32 and BEHRINGER X32 mixers provides 32-channel bi-directional audio I/O via USB 2.0 for both live performance and studio recording, plus comprehensive remote operation of your DAW via HUI/Mackie Control emulation. The addition of dual SD/SDHC slots allows fully independent recording and playback of up to 32 channels of uncompressed WAV files in consistent sessions – up to the maximum capacity of the SD cards. Now, without the need for a laptop computer, you can capture multi-channel live or session tracks, perform virtual sound checks, add in backing-tracks, set and manipulate accurate markers, and enjoy full remote operation via PC, Android * or iPad * apps, and X-TOUCH control surfaces. All of this barely begins to scratch the surface of what DN32-LIVE can bring to your M32/X32 console.

DN32-LIVE Makes Multi-Tracking a Breeze

Your console’s recording capability just got even more robust, thanks to the new DN32-LIVE Expansion Card and USB Audio/MIDI Interface. Whether you’re multi-tracking your live performances directly to a PC/Mac, or to the flash media in your console, DN32-LIVE makes it easier than ever. Equipped with dual SD/SDHC-card slots, DN32-LIVE provides uncompressed recording and playback of up to 64 GB of memory, enough to capture a 3 hour and 20 minute continuous 32-track session – all of which can be done without ever leaving the console. Just think about it, no external wiring or computer issues – everything you need in a single location. And DN32-LIVE is equally at home in either the recording studio or the performance venue.

Independent USB & SD Operation

The DN32-LIVE USB and SD interfaces can be operated simultaneously and independently. For example, you may want to play back your recorded session from an SD card and record the tracks via USB into your favorite DAW for post-processing. Or, you might need to prepare live backing tracks in your DAW and then transfer them to an SD card in real time, while setting performance markers on-the-fly. You can even record using both the USB and SD simultaneously for redundancy. Best of all, these operations can be performed without routing tracks through your console channels.
