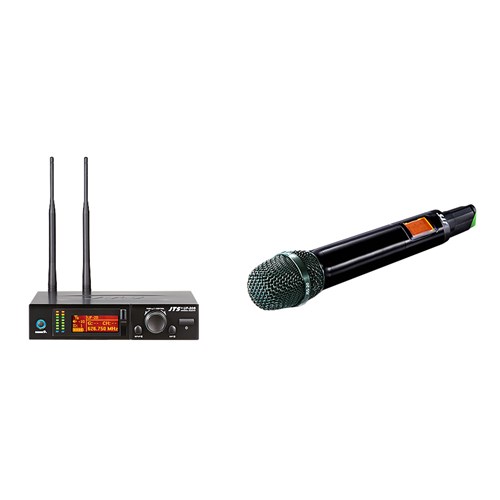

UF-20S + JSS-20 624-694MHZ UF-20 SINGLE CHANNEL SYSTEM WITH HAND-HELD TRANSMITTER



JP-UF20SKITHB9

UF-20S + JSS-20 624-694MHZ UF-20 SINGLE CHANNEL SYSTEM WITH HAND-HELD TRANSMITTER



UF-20S

• UHF True diversity technology renders 200-480 meters of operation distance
• Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
• Preset 15 groups each of up to 63 compatible channels
• User programmable 6 groups each of 64 channels
• Free space scan function
• JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
• JTS LCX circuit design technology minimizes companding noise

NEWEST FEATURE:

• The is now not only sends the frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user’s name.
• RF “NO SIGNAL” alert function.
• AF “MUTE” alert function.
• Transmitter “LOW BATTERY” alert function.
• Built in equalizer



SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Frequency Setting

• JTS patented obstacles-free RF REMOSET

Carrier Frequency Range

• UHF 470~960 MHz

Channel

• Single

Bandwidth

• 60~75MHz Wideband

S / N Ratio

• > 108dB (A)

T.H.D

• <0.5% @ 1KHz

Chassis

• 1U/2U standard metal chassis

Preset Channels / Group

• From group 1 ~ 15 up to 63 interference-free compatible channels.
• 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
• User programmable from U1 ~ U6 each of 64 channels reserved.

Display

• LCD

Display Contents

• Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch

Sensitivity

• 6dBμV, at S / N> 80dB

Receiving Mode

• True diversity

Audio Output Level

• Maximum 6dBu

Receiving Mode

• True diversity

Audio Output Level

• Maximum 6dBu

AF Output Impedance

• 600Ω

Frequency Response

• 50Hz ~ 18kHz, with high-pass filter

Squelch

• Pilot Tone & Noise Mute

Power Supply

• 100 ~ 240V or 12V DC

Output Connector

• 1 XLR Balanced Socket
• 1 Ø6.3mm Unbalanced phone jack

Dimension (m / m)

• 212mm(W)x44Mmm(H)x213.9mm(D)

Notes

• Actual product specifications may vary depending on model and region.



JSS-20

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Adjustable transmission power between Low and High

NEWEST FEATURE :

• Low cut function.
• JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
• Interchangeable capsule design for various choices including some classic capsule modules.
• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• UHF 470~960 MHz

Bandwidth

• 60~75MHz Wideband

RF Outputs

• Low / High

Stability

• < ±10KHz

Frequency Deviation

• ±48KHz (Peak)

LCD Display

• Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust

Controls

• Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Spurious Emissions

• <-50 dBC

Audio Frequency Response

• 50Hz ~ 18k Hz

Capsule Module

• Interchangeable

Battery

• AA NiMH x2

Dimensions

• 50mm (W) x253mm (H) x35.5mm (D)

Weight

• 350g

Notes

• Actual product specifications may vary depending on model and region.
