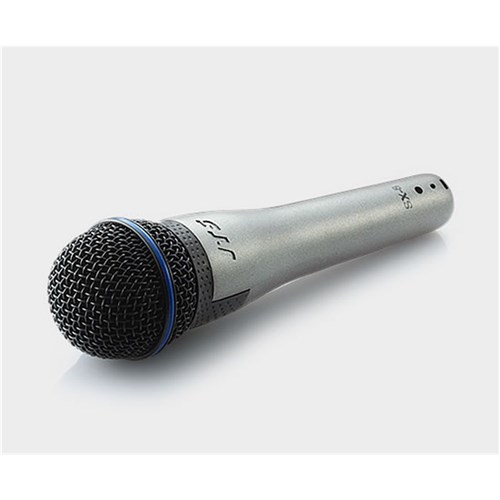

PREMIUM HANDHELD DYNAMIC MIC FOR VOCALS

SX-8

SX-8/SX-8S re-enhance overall performance. SX-8/SX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. Ideal for lead vocal.

SPECIFICATIONS

Type

• Moving Coil Dynamic

Frequency Response

• 50~16,500 Hz

Polar Pattern

• Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz)

• -77dB*(0.14mV)*0dB=1V/μbar

Impedance

• 250Ω

Phasing

• Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector

• Three-pin professional audio connector (male XLR type)

Case

• Metallic enamel-painted die cast metal body with hardened, Matte-finished steel grille
