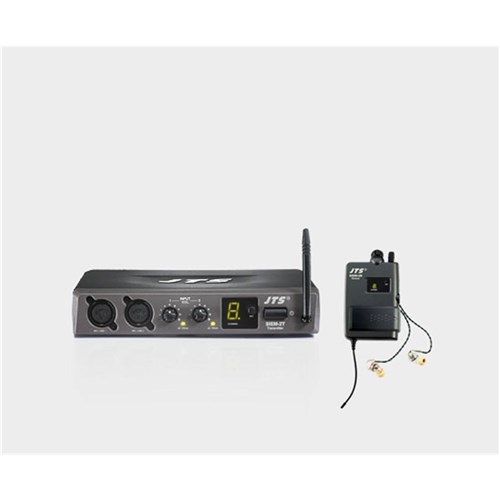

SIEM2 SYSTEM 638-662MHZ SIEM-2T + SIEM-2R + IE-1 MONO SYSTEM

SIEM-2 SYSTEM

This affordable in ear monitor SIEM-2 system has been waited for long time as more performers used to having in ear monitor instead of relying on wedges. The SIEM-2 breaks the price barrier for every musician.

includes

• SIEM-2T transmitter
• SIEM-2R belt-pack receiver
• IE-1 earphones, mono system

SPECIFICATIONS

SIEM-2T
Carrier Frequency Range

• 638-662MHz

RF Output Power

• 10 mW

Nominal Frequency Deviation (modulation)

• ±40KHz

Audio Input Impedance

• 20kΩ

Nominal Input Level

• -20 dBV

Maximal Input Level

• 0 dBV

LED Display

• AF Level, Channel

Audio Input Connector

• 2 x Balanced XLR

Loop Out Connector

• 2 x Ø6.3mm Balanced Loop Out Socket

Operation Voltage

• 12-18 VDC, 600 mA

SIEM-2R
Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 638-662MHz

LED Display

• Channel

Controls Power

• On/Off,
• Channel selection,
• Volume control

Audio Frequency Response

• 40~18,000 Hz

Output connector

• 1/8” Dummy stereo Phone Jack

Battery life

• 14 hours typical

Battery

• 2 AA batteries
