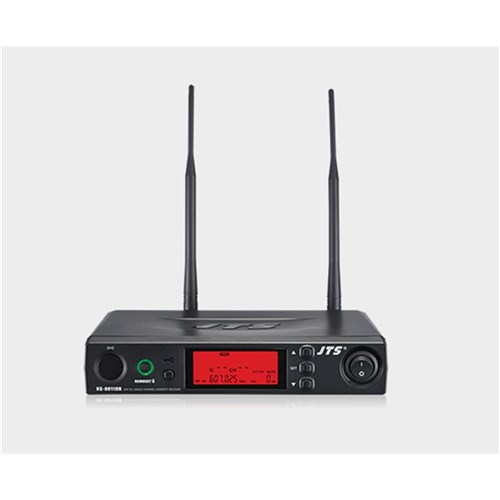

8011DB RECEIVER 520-556MHZ 1 CHANNEL, 1 RU HALF WIDTH

RU-8011DB

This product is a full feature version of RU-8011D. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 520-556 MHz

Frequency Setting

• REMOSET U

Receiving Mode

• Antenna Diversity

Bandwidth

• 36MHz

S/N Ratio

• >105dB(A)

T.H.D

• <0.6%@1KHz

Sensitivity

• -95dBm,S/N>80dB

Rejection Ratio

• >80 dB

Frequency Response

• 50Hz~16KHz±2dB

Antenna Type

• BNC Socket

Antenna Booster Power

• DC12~15V/100mA

Display

• LCD

Display Contents

• Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume

Controls

• Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF)

Audio Output Level

• Ref/ ±22.5KHz Dev@1KHz Tone
• ψ6.3 Phone Jack/ -10dBV
• XLR Jack/ -4dBV(Line) Ë´ -24dBV(MIC)

Audio Output Impedance

• 600Ω

Squelch

• Pilot Tone & Noise Mute

Output Connector

• 1 independent balanced XLR and one Ø6.3mm unbalanced.

Power Supply

• DC12~15V/300mA

Dimension (mm)

• 212.3mm(W)* 38.3mm(H)* 144mm(D)

Notes

• Acutal product specifications may vary depending on region
