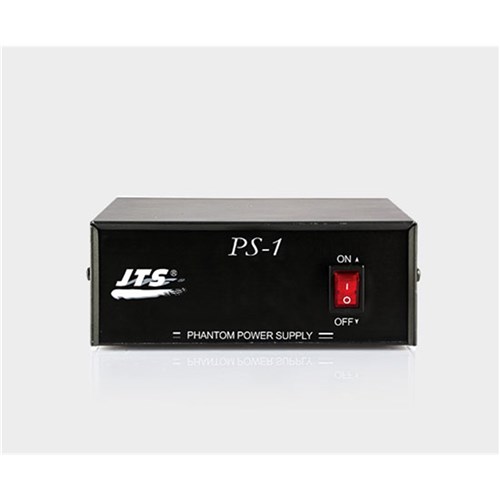

PHANTOM POWER SUPPLY MAINS POWER, SINGLE CHANNEL

PS-1

48V Phantom Power Supply. Provides constant 48V power for condenser microphones when phantom power is not available on the mixer or for field recording direct to tape, hard disk computer based on DAW.

SPECIFICATIONS

Number of Channels

• PS-1 : 1

Regulated Output Voltage

• 48V ±2V DC

Short Circuit Output Current

• 14 mA

Signal To Noise Ratio

• 105 dB

Frequency Response

• 10~22,000 Hz

AC Input

• 110/220V AC, 50-60 Hz, 3W max

Input Connector

• 3-pin XLR Female

Output Connector

• 3-pin XLR Male

Dimensions (mm)

• 143.6mm(W)* 55.9mm(H)* 184.7mm(D)
