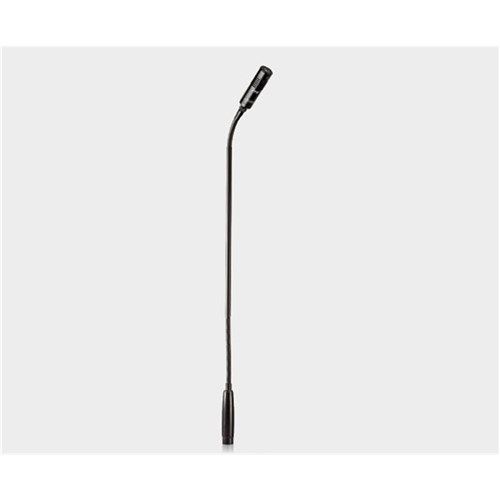

18″ GOOSENECK 3-PIN XLR JS-22

GM-5218T

The GM-5218T brings studio quantity sound to PA. The JS-22MXC, 1/2” golden plated capsule, is built on a solid brass with accurate processing. The 1/2” golden plated diaphragm is manually assembled by JTS craftsman. Precise designed circuit with low cut and pad provides flat response. This microphone royally reproduces any kinds of vocal and music instruments.

• 1/2” golden plated capsule
• Cardioid pick up pattern
• Built in low cut and pad
• Detachable capsule module design for expansion application

SPECIFICATIONS

Type

• Condenser Mic

Frequency Response

• 20~20,000 Hz

Sensitivity

• -36±3 dB* (15.8mV) 0dB
• =1V /Pa,1kHz

Polar Pattern

• Cardioid

Attenuation Switch.

• -10dB

Low Frequency Roll-off

• 80Hz

Impedance

• 100Ω

Max. SPL For 1% T.H.D.

• 140 dB

Signal To Noise Ratio

• 78dB

Power Supply

• 36~52VDC phantom power

Current consumption

• ≤3mA

Output

• XLR-M type(power module)

Length

• GM-5218T : 620mm
