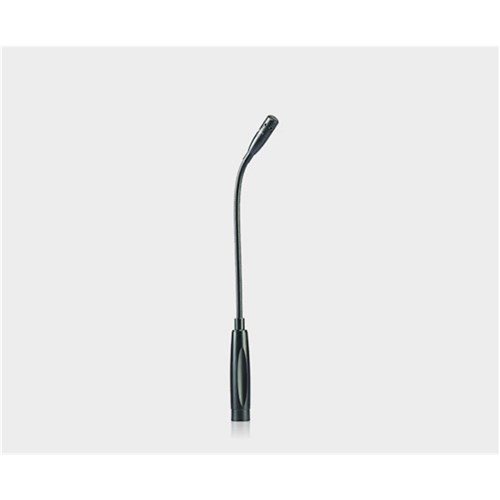

6″ GOOSENECK 3-PIN XLR

GM-5206

The JTS GM Series Condenser Gooseneck Microphones are available in 2 versions: The GM-5206, GM-5212, GM-5218, GM-5225 are terminated with a XLR(M) plug in connector for mating to a XLR(F) connector. The GM-5212C feature a 5/8” – standard 27 thread mic stand adapter for mounting on a mic stand or a mic mounting flange for podium mounting and feature a side exit cable with a XLR(M) connector.

? Definitive polar pattern allows for demanding sound pickup applications.

• The small diameter gooseneck design permits flexible position.
• High sensitivity allows for quality sound pick-up under difficult conditions.
• Equipped with XLR connector for GM-5206/GM-5212/GM-5212L/GM-5218/GM-5218L/GM-5225/GM-5225L and extension cable for GM-5212C
• Foam Windscreen provided for shielding against wind noise and “ popping” .

(K) = GM-K : Gooseneck microphone with lock mechanism
The rest specifications are identical to GM series.

SPECIFICATIONS

Type

• Back Electret Condenser

Frequency Response

• 80~18,000 Hz

Polar Pattern

• Supercardioid

Output Connector

• XLR(M) type (power module) : GM-5206/GM-5212/GM-5218/GM-5212L/GM-5218L/GM-5225/GM5225L
• Screw 5/8” *27 : GM-5212C

Sensitivity (at 1,000Hz)

• -60dB(1mV)

Impedance

• 220Ω

Max. SPL for 1% T.H.D.

• 125 dB

Length

• GM-5206 : 303mm
