JBL

JBL-CTRL322C

JBL – CTRL322C

$1,717.30 RRP Inc GST

Quantity

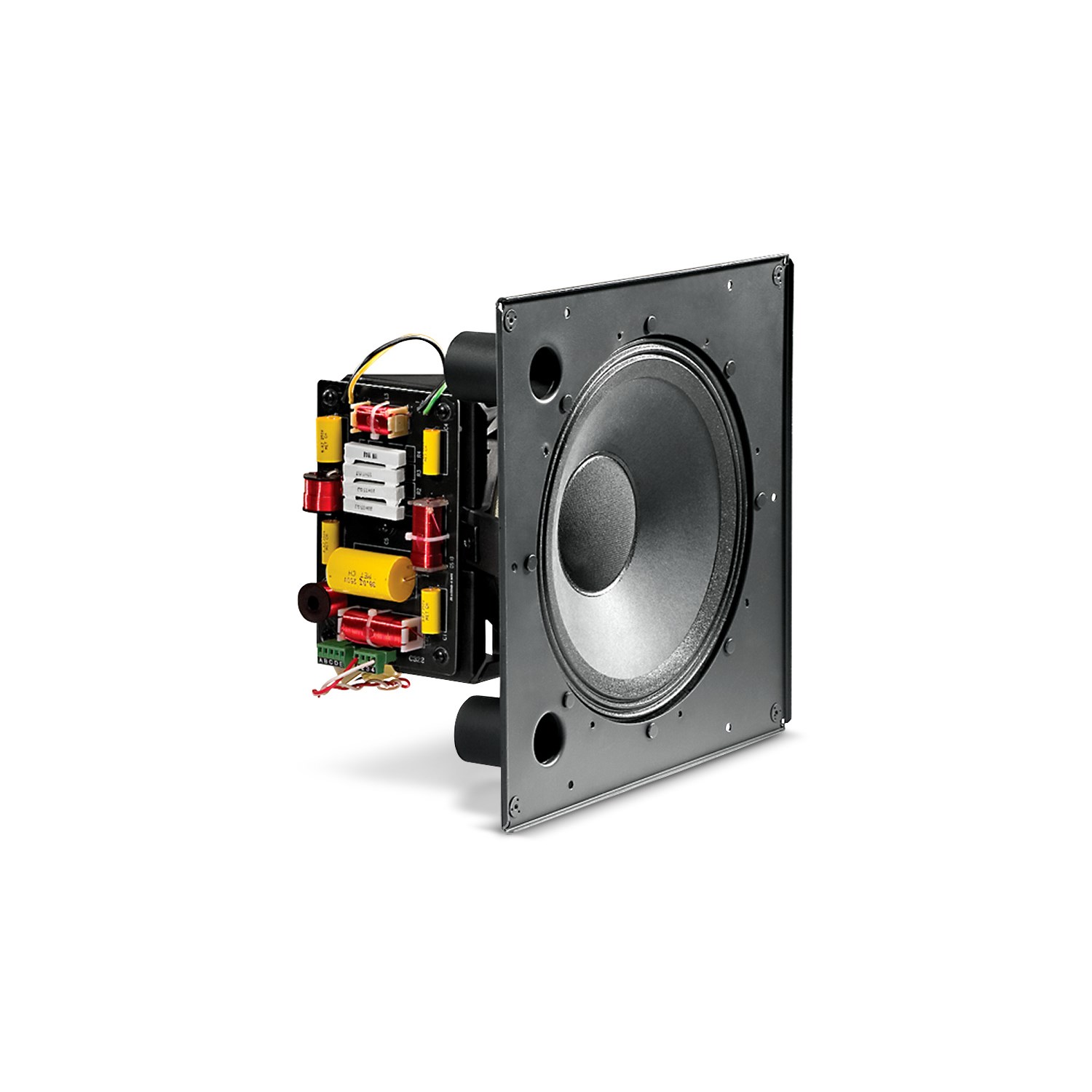

JBL Control 322C – High-output 12 Inch Coaxial Ceiling Loudspeaker

Key Features
High-Power 12 Coax Ceiling Loudpeaker with Medium Format Compression Driver. True Broadband 90º Coverage. 400 Watts, 32 Hz to 20 kHz Frequency Response, 95 dB Sensitivity. 2407H Compression Driver. 14.4 Square Ported Baffle x 8.8 Deep. EZ-Rail for Ease of Installation. UL LISTED

High-output 12 in. Coaxial Ceiling Loudspeaker

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 90° broadband pattern control.
  • Components
    • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
    • Medium-format compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • Power handling of 400 Watts with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.
Frequency Range (-10 dB) 32 Hz 20 kHz
Long-Term SystemPower Rating 400 W (1600 W peak), 2 hrs250 W (1000 W peak), 100 hrs
Sensitivity (2.83V@ 1m) 95 dB measured half-space100 dB computed for competitive comparison
Frequency Response ( 3 dB) 48 Hz 19 kHz
Coverage Pattern 90 conical, broadband (Avg. 1k – 16kHz)
Directivity Factor (Q) 9 (1k – 16kHz)
Directivity Index (DI) 9.5dB (1k – 16kHz)
Crossover Network 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance 8 ohms
Dimensions (H x W x D) 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
SKU JBL-CTRL322C Categories , , , ,
