JBL

JBL-CTRL321CT

JBL – CTRL321CT

$1,298.57 RRP Inc GST

Quantity

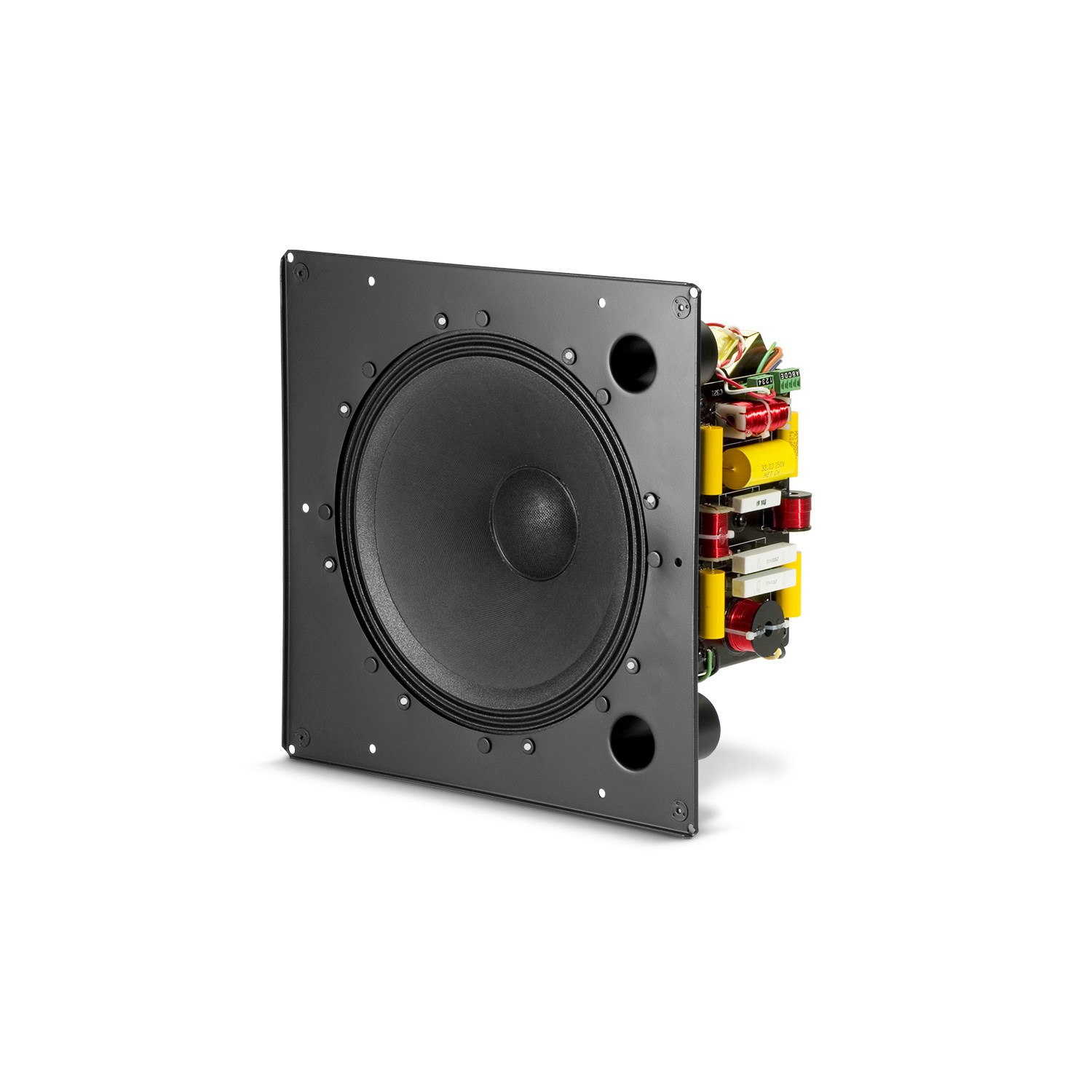

JBL Control 321CT – 12 Inch Coaxial Ceiling Loudspeaker with HF Compression Driver with Transformer

Key Features
Control 321C with pre-attached 60 Watt 70V/100V Multi-Tap Transformer. Taps at 68W, 34W and 17W (Plus 8.5W at 70V Only). 14.4 Square Ported Baffle x 9.5 Deep. EZ-Rail for Ease of Installation. UL LISTED

12 in. Coaxial Ceiling Loudspeaker with HF Compression Driver

The Control 321CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 90° broadband pattern control.
  • Components
    • 300 mm (12 in) woofer with Kevlar-reinforcedcone with 50 mm (2 in) voice-coil.
    • 25 mm (1 exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.
Frequency Range (-10 dB) 34 Hz 18 kHz
Power Rating 200 W (600 W peak), 100 hrs
Taps 70V: 68W, 34W, 17W, 8.5W100V: 68W, 34W, 17W
Frequency Response ( 3 dB) 47 Hz 16 kHz
Coverage Pattern 90 conical, broadband (Avg 1k – 16kHz)
Directivity Factor (Q) 8.7 (1k – 16kHz)
Directivity Index (DI) 9.4 dB (1k – 16kHz)
Sensitivity (2.83V@ 1m) 94 dB measured half-space99 dB computed for competitive comparison
Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Dimensions (H x W x D) 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)
SKU JBL-CTRL321CT Categories , , , ,
