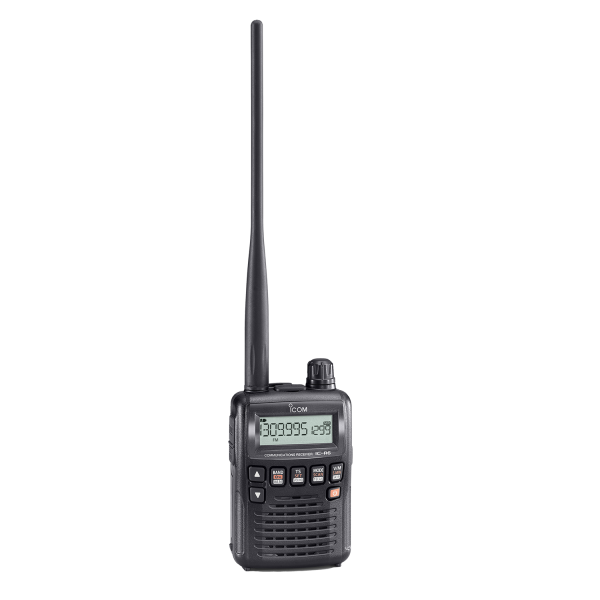

COMMUNICATIONS RECEIVER
IC-R6
The 100 Ch/Sec Wideband Signal “Search Machine”
Wideband Signal ‘Search Machine’
The power of listening to the world in the palm of your hand is possible with the compact R6! Whether you are listening to a shortwave station, the local airport approach or ground communications, or simply scanning the various frequency ranges, the R6 offers the most frequency coverage
The power of listening to the world in the palm of your hand is possible with the compact R6! Whether you are listening to a shortwave station, the local airport approach or ground communications, or simply scanning the various frequency ranges, the R6 offers the most frequency coverage for under $300.
RX Frequencies:
100kHz-1309.995MHz
Channels:
1300 with 22 memory banks
KEY FEATURES:
Wideband Coverage
While the R6 receives an ultra wideband frequency range, the radio provides superior sensitivity and receiver characteristics, which are insusceptible to interference. Amateur stations, AM, FM, short wave broadcasts, TV audio* and a variety of utility communications can be caught and listened to.
*Frequency range depends on version. Analog TV audio only. Cannot decode digital TV audio.
Scanning Functions
With 1300 alphanumeric memory channels, 50 scan edges and 200 auto write memories, the R6 gives you flexible scanning. Use the bank link scan feature to choose from and connect any of the 22 memory banks.
100 Channels per Second High Speed Scan
The IC-R6 has 100 channels per second high speed scan capability*. This superior scanning power allows the utmost efficiency when searching over 1300MHz of spectrum!
VFO mode scanning
VSC (Voice Squelch Control)
The VSC opens the squelch only when a modulated signal is detected and ignores unmodulated beat noise. It is a handy feature for those listeners who are scanning for talk, news and music, but not data bursts or beacons.
Multiple Power Choices
The IC-R6 can be powered by rechargeable Ni-MH cells (sold sepatately), or with alkaline batteries. Run the IC-R6 using the optional AC adapter BC-196A/SD (sold separately), or opt for a cigarette lighter cable, CP-18A/E (sold separately). When used with the optional drop-in charger stand BC-194 and with the AC adapter or cigarette lighter cable, you can easily start charging the Ni-MH cells, while eliminating the need to connect the power source to the DC power jack of the receiver.
FEATURES LIST:
-
The 100 Ch/Sec Wideband Signal “Search Machine”
-
Full frequency coverage (0.100 MHz to 1309.995 MHz)
-
High Speed Scan (100 Ch per Second)
-
FM WFM AM Receive Modes
-
Internal bar-antenna (For superior AM reception)
-
1300 Memory Channels (22 Memory Banks)
-
Louder, Clearer Audio Output (BTL Circuits)
-
15 Hours of Continuous Receive (With External Speaker)
-
VSC (Voice Squelch Control)
-
Auto Digital Squelch Multiple scan functions Auto Memory Write Scan (Detects & Stores Frequencies)
-
Tone (CTCSS decode) & DTCS decode
-
Required 2x AA Alkaline or Ni-MH cells (both sold separately)
-
External DC input (for desktop use & Ni-MH charging)
-
Optional PC programming (Enter frequencies with ease)
-
Antenna Type – SMA
General
Frequency coverage
(Differs according to version) |
0.100–1309.995MHz* |
| Mode |
AM, FM, WFM |
| Frequency stability |
±1.0ppm
(at 25°C) |
| Current drain |
Rated audio output: 130mA typ.
(Ext. SP, backlight off) |
| Battery pack or cells |
2×R6 (AA) size Ni-MH or alkaline cells |
| External power supply requirement |
4.5V DC rated
(4.5 – 6.3V with BC- 196SA/SD, CP-18A/E) |
| Antenna impedance |
50Ω (SMA) |
| Number of memory channels |
1550
(1300 regular, 200 auto memory write
and 50 scan edges) |
Dimensions
(W×H×D; Projections are not included) |
58×86×29.8 mm;
2.28×3.39×1.17 in |
| Weight (approx.) |
200g; 7.1oz |
Receiver
Sensitivity
(typical, except spurious points) |
FM (at 12dB SINAD): |
1.625MHz– 4.995MHz 0.32μV typ.
5.000MHz– 29.995MHz 0.25μV typ.
30.000MHz– 117.995MHz 0.18μV typ.
118.000MHz– 246.995MHz 0.18μV typ.
247.000MHz– 469.995MHz 0.18μV typ.
470.000MHz– 832.995MHz 0.32μV typ.
833.000MHz–1029.995MHz 0.28μV typ.
1030.000MHz–1309.995MHz 0.35μV typ. |
| WFM (at 12dB SINAD) |
76.000MHz– 108.000MHz 1.1μV typ.
175.000MHz– 221.995MHz 1.1μV typ.
470.000MHz– 770.000MHz 1.8μV typ. |
| AM (at 10dB S/N): |
0.495MHz– 4.995MHz 1.3μV typ.
5.000MHz– 29.995MHz 0.89μV typ.
118.000MHz– 136.000MHz 0.63μV typ.
222.000MHz– 246.995MHz 0.63μV typ.
247.000MHz– 329.995MHz 0.79μV typ. |
| Selectivity |
AM, FM: |
More than 12kHz/–9dB,
Less than 30kHz/–60dB |
| WFM |
More than 150kHz/–6dB |
| AF power (at 10% distortion) |
Internal speaker (16Ω load) More than 150mW
External speaker (8Ω load) 80mW typ. |
| External speaker connector |
3-conductor 3.5 (d) mm (1⁄8″)/8Ω |
* Cellular bands are blocked in the USA version.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard |
MIL-810 G |
| Method |
Procedure |
| Low Pressure |
500.4 |
I,II |
| High Temperature |
501.4 |
I,II |
| Low Temperature |
502.4 |
I,II |
| Temperature Shock |
503.4 |
I |
| Solar Radiation |
505.4 |
I |
| Humidity |
507.4 |
– |
| Vibration |
514.5 |
I |
| Shock |
516.5 |
I,IV |
Also meets equivalent MIL-STD-810-C, -D -E and -F.
Ingress Protection Standard
| Water |
IPX2 (Drip resistant) |
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Ni-MH cells*
- AC adapter, BC-196SA/BC-153SE*
- Antenna
- Belt clip
- Handstrap
* Not supplied depending on version
