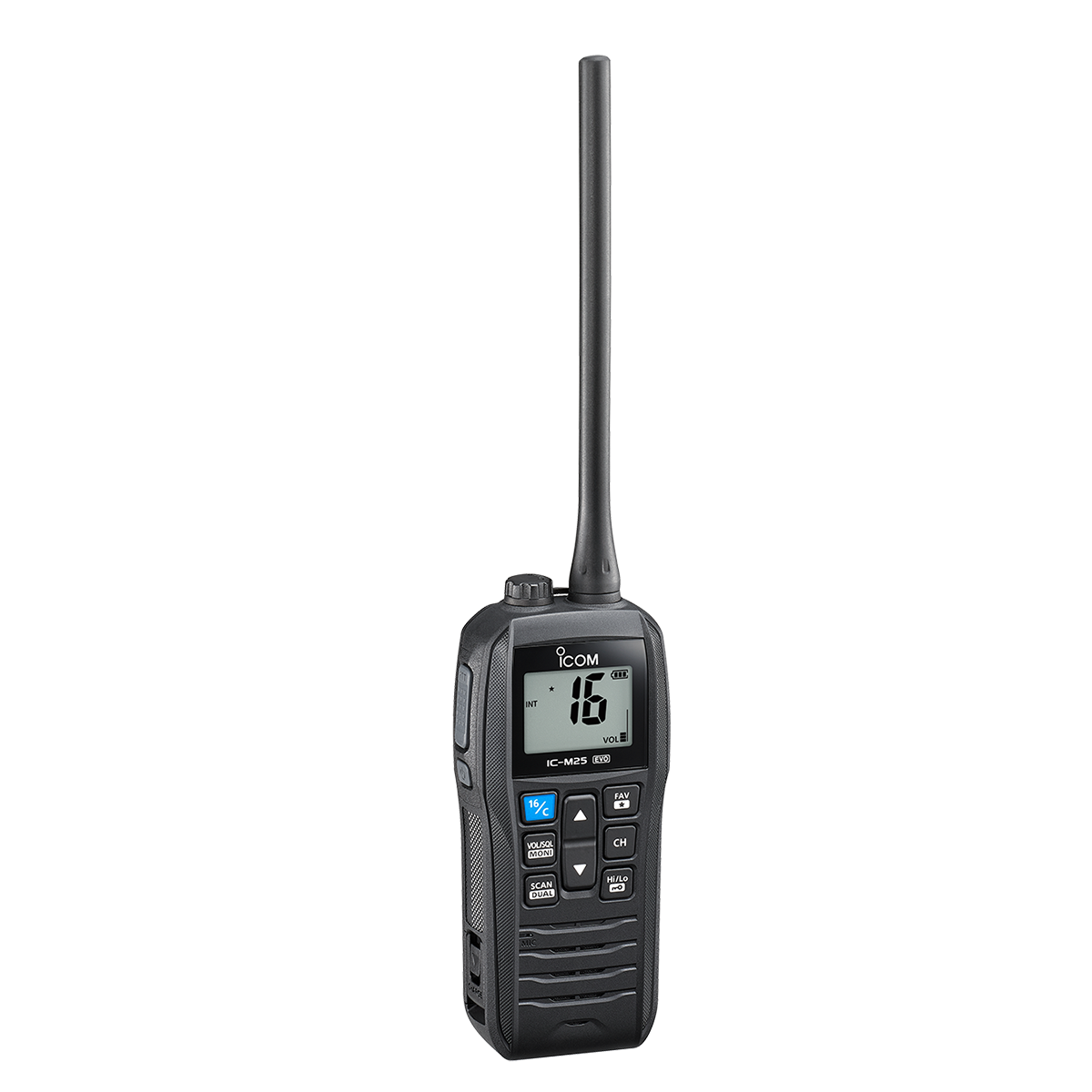

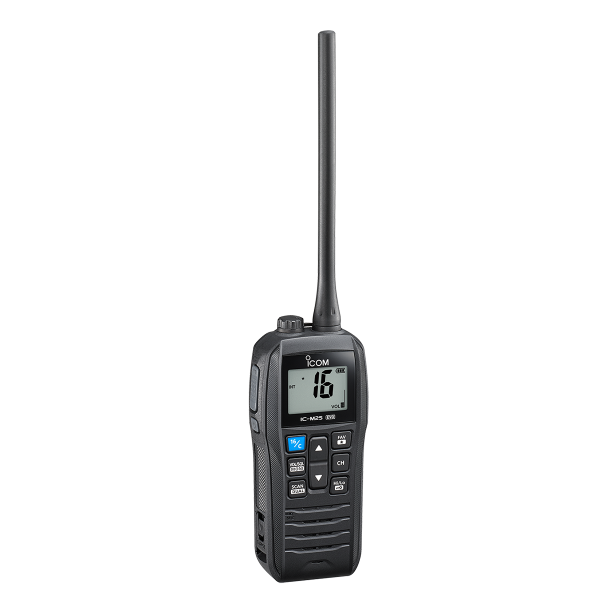

ICO-IC-M25EUROEV

Buoyant VHF Radio with a Fresh Design for Marine Adventures

*Only available in black in the Australian market.

General
Frequency range Tx 156.000 ~ 161.450 MHz
Rx 156.000 ~ 163.425 MHz
Usable channel groups
INT, USA*, ATIS* channels

Depending on version

Type of emission 16K0G3E (FM)
Power supply voltage 3.7 V DC nominal
Current drain Tx 2.3 A
Rx (Internal SP/External SP) 400 mA/230 mA (max. audio)
Operating temperature range –15°C ~ +55°C
Antenna impedance 50 Ω
Dimensions (W × H × D)
(Projections not included) 56.5 × 134.0 × 31.2 mm
Weight (approximately) 228 g (with antenna and MB-133）
Transmitter
Output power Approximate 5 W / 2.5 W / 1 W
Max. frequency deviation ±5.0 kHz
Frequency stability ±1.5 kHz
Spurious emissions Less than 0.25 μW
Adjacent channel power More than 70 dB
Residual modulation More than 40 dB
Receiver
Sensitivity –6 dBμ emf typ. (at 20 dB SINAD)
Squelch sensitivity –6 dBμ emf typ. (at threshold)
Adjacent channel selectivity More than 70dB
Spurious response More than 70dB
Intermodulation More than 68dB
Audio output power
(at 10% distortion) Internal SP 700 mW (8 Ω load)
External SP 200 mW (4 Ω load)
