CRO-CDI2X600BL

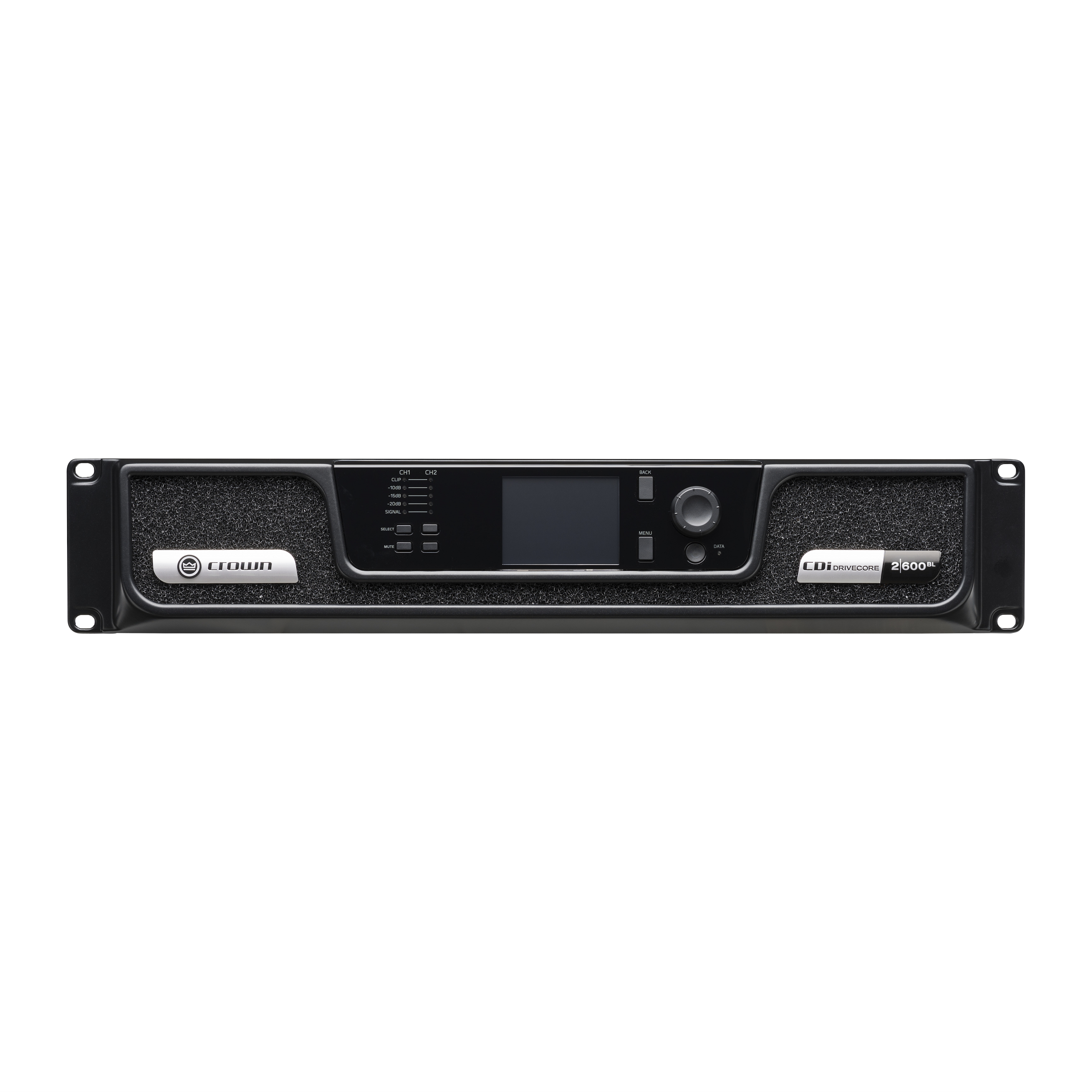

Crown – CDI2X600BL

$4,561.10 $4,082.19

Quantity

Crown CDI2600BL – 2-Channel 600W per output Channel Amplifier plus BLU link input

Key Features
Analog + BLU link input, 2 channel, 600W per output channel

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|600BL offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more.

Features

CDi DriveCore Model Channels Network Control DSP Control Port BLU link
2|600BL 2

DriveCore Technology – Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.

Network Control and Monitoring – Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.

DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration

  • Input Router
  • Input Delay – Up to 1000ms
  • Input Parametric EQ – 8 band
  • Crossover
  • Output Parametric EQ – 8 band
  • Output Delay – Up to 100ms
  • LevelMAX™ Limiter

BLU link (BL models only) – Both receive and send channels over HARMAN’s 256 channel, fault-tolerant audio BUS, BLU link

Direct Drive 70/100Vrms Output – Each output channel is capable of provide either 70V or 100V for high impedance applications.

GPIO/AUX Port – Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.

Output Power: Dual Mode – All Channels Driven

CDi DriveCore Model Channels 16Ω 70Vrms 100Vrms
2|600 / 2|600BL 2 300W 600W 600W 300W 600W 600W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 – 240Vrms – 50/60Hz)

Output Power: Bridge Mono Mode – All Channels Driven

CDi DriveCore Model 16Ω 140Vrms 200Vrms
2|600 / 2|600BL 600W 1200W 1200W 1200W 1200W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 – 240Vrms – 50/60Hz)
