Uhf True Div Receiver 650Mhz SDR6200-6 Chiayo

Product Code: CH-SDR6200-6

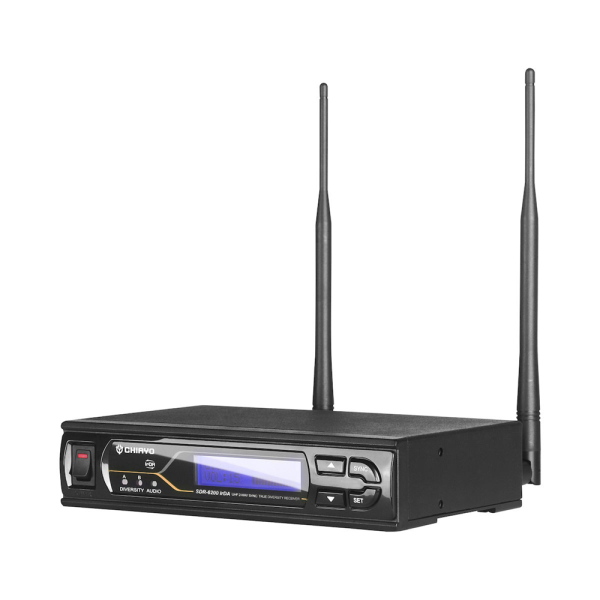

SDR-6200 IrDA UHF 1/2 19″ Single-Channel 2-Way Sync True Diversity Receiver

Patented IrDA® technology

• Auto Scan quickly searches for an interference-free working channel.
• World-first patented IrDA® technology provides rapid 2-way channel sync with one click.

Functions display

• LCD: Channel, frequency,volume
• LED: RF level, AF level, antenna selection

Intelligent Detected Mute Control

• Pilotone, noise-detector and squelch circuits prevent noise, interference and improve operation distance.
• True diversity reception for best performance and reliability.

Adjustable Squelch

Adjustable SQ. Increases receiver range with higher sensitivity and reduces interference with lower sensitivity.

Audio Output

• Convenient gain/volume control(s).
• Audio output jacks: balanced XLR or unbalanced 6.3mm.

Specifications

• Model:    SDR-6200 IrDA
• Chassis:    EIA standard 19″ metal 1/2U
• Receiving mode:    True diversity
• Frequency range:
  • 5A – .520-526MHZ
  • 5B – .566-590MHZ
  • 6 – .650-675MHZ
• Bandwidth:    25 MHz
• Channel:    Single
• Preset frequencies:    100
• Channel sync:    2-way (RX ⇔ TX)
• Frequency response:    50 Hz – 18 KHz
• Peak deviation:    ± 40 KHz
• Sensitivity:    S/N > 80 dBm at 10 dBμV
• S/N ratio:    > 110 dB(A)
• T.H.D.:    < 0.5% @ 1 KHz
• Receiving antenna:    Detachable at rear-end, TNC female.
• Oscillation:    PLL synthesized, frequency stability ± 0.005% (-10 – +60°C)
• Squelch:    Pilotone & Noise-cancelling dual-squelch circuit
• Audio connector:    Balanced XLR and unbalanced Ø6.3mm
• Audio Output Adjustment:    Gain control circuit for adjustment of output volume
• Power supply:    12V DC / 1.0A
• Dimensions (mm):    200 x 150 x 44
• Weight (kg):    0.63
