2 Ch Div Receiver 650Mhz SDR6120-6 Chiayo

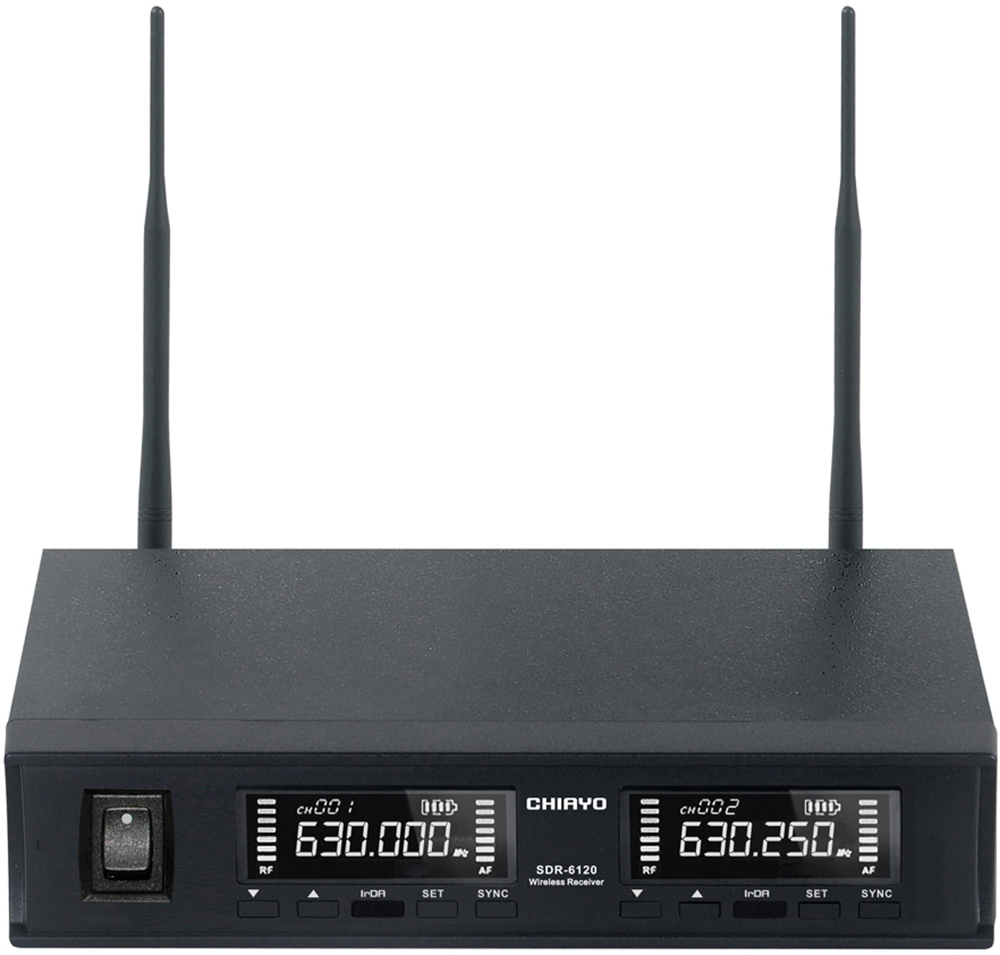

SDR-6120 IrDA
UHF 1/2 19″ Dual-Channel 2-Way Sync Diversity Receiver

2-way channel synchronization
Patented in multiple countries and the world’s first IrDA® two-way channel synchronization technology. After selecting a clean channel on the transmitter or receiver, a single button will quickly synchronize both units. 100 preset channels available for selection.

No more noise
Proprietary pilotone, noise-detector and squelch circuits prevent noise interference. Adjustable SQ to increase receiver range with higher sensitivity and reduce interference with lower sensitivity.

Real-time display
High contrast LCD on the front panel displays antenna selection status and setting details, as well as monitoring the battery status and input volume of the connected transmitter for the audio engineer to handle and ensure the best sound quality.

Specifications

• Model:    SDR-6120 IrDA
• Chassis:    EIA standard 19″ metal 1/2U
• Receiving mode:    Diversity
• Frequency range:
  • 5A – .520-526MHZ
  • 5B – .566-590MHZ
  • 6 – .650-675MHZ
• Bandwidth:    25 MHz
• Channel:    Dual
• Preset frequencies:    100
• Channel sync:    2-way (RX ⇔ TX)
• Frequency response:    50 Hz – 18 KHz
• Peak deviation:    ± 40 KHz
• Sensitivity:    S/N > 80 dBm at 10 dBμV
• S/N ratio:    > 110 dB(A)
• T.H.D.:    < 0.5% @ 1 KHz
• Receiving antenna:    Detachable at rear-end, TNC female.
• Oscillation:    PLL synthesized, frequency stability ± 0.005% (-10 – +60°C)
• Squelch:    Pilotone & Noise-cancelling dual-squelch circuit
• Audio connector:    Balanced XLR and unbalanced Ø6.3mm
• Audio Output Adjustment:    Gain control circuit for adjustment of output volume
• Output level switch:    MIC-LINE
• Power supply:    12V DC / 1.0A
• Dimensions (mm):    200 x 150 x 44
• Weight (kg):    0.73
