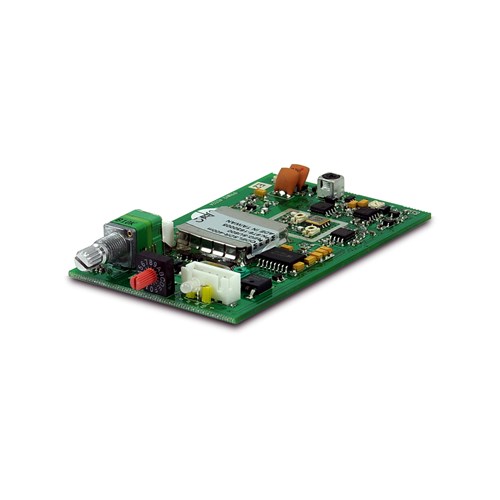

16 Ch Uhf Rcv Module-Band 5B SDR400M-5B Chiayo

CHIAYO SDR400M 16 CH UHF RCV MODULE-BAND

• Model:    SDR-400m
• Receiving mode:    Diversity
• Frequency range:
  • 5A: UHF 520-526MHZ
  • 5B: UHF 566-590MHZ
  • 6: UHF 650-675MHZ
• Bandwidth    20 MHz
• Preset frequencies    16
• Frequency response    50 Hz – 18 KHz
• Peak deviation    ± 40 KHz
• Sensitivity    S/N > 80 dBm at 10 dBμV
• S/N ratio    > 100 dB(A)
• T.H.D.    < 0.5% @ 1 KHz
• Receiving antenna    Built in
• Modulation    FM
• Squelch    Pilotone & Noise-cancelling dual-squelch circuit
• Audio Output Adjustment    Volume knob for adjustment of output volume
• Power supply    12V DC
• Dimensions (mm)    55 x 96 x 17
• Weight (g)    33
