BSS – BSS-BLUDIGITALIN
$1,003.11 $897.79

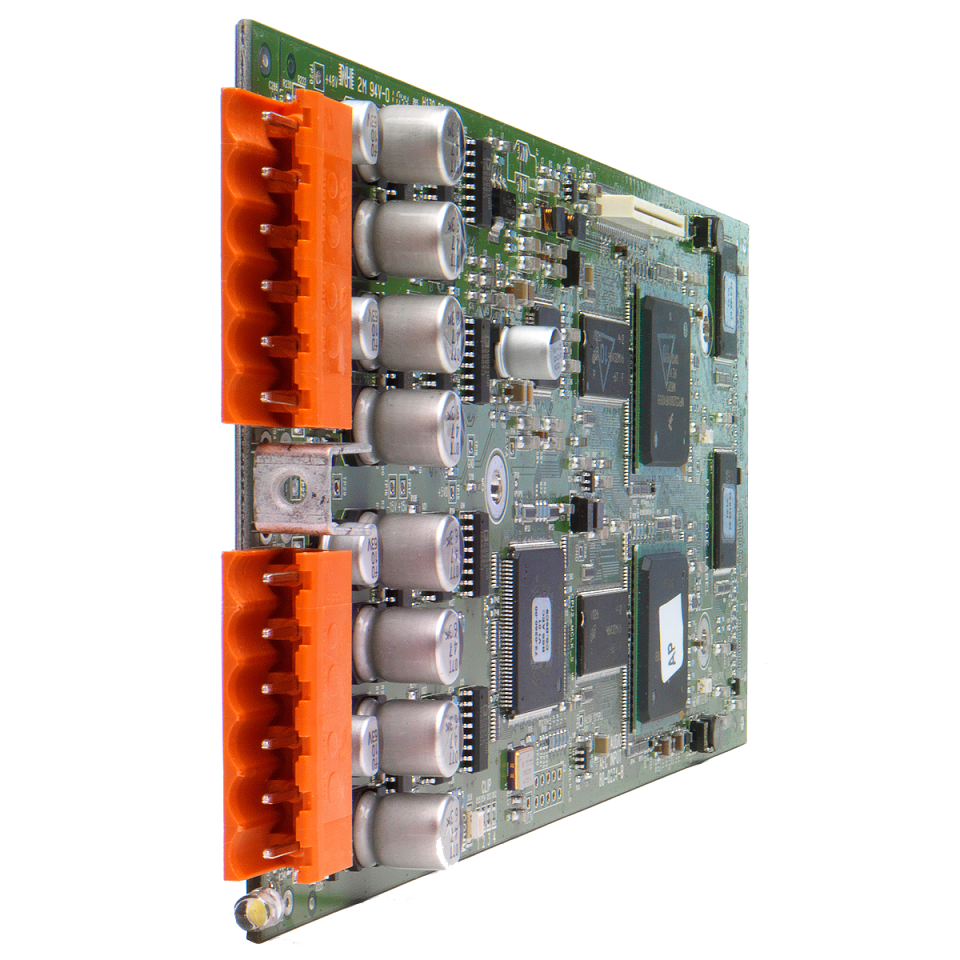

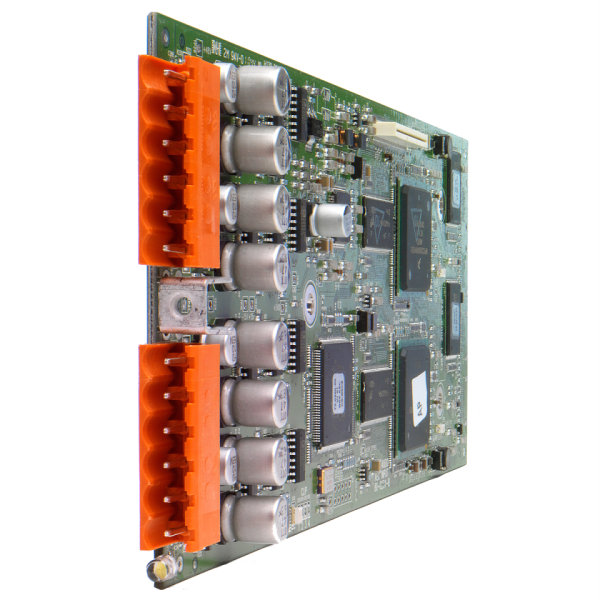

The Soundweb London Digital Input card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. These digital cards enable Soundweb London devices to receive AES/EBU and S/PDIF audio signals.
The Digital Input Card can be configured in the following ways:
The Digital Input Card has two Combicon connectors which are used as follows:
Connector | [S/PDIF Combicon] | [AES/EBU Combicon] | ||
---|---|---|---|---|
Signal | 4 | 3 | 2 | 1 |
Pin | [S + -] | [S + -] | [S + -] | [S + -] |
Balanced | Positive: to + | Unbalanced | Signal: to + |
---|---|---|---|
Negative: to – | Signal Ground: to – | ||
Shield: to S | Shield*: to S | ||
* Short “S” to “-” for unshielded cable |
