Apart E-VOL20

Euro Volume Control (BIA-E-VOL20)

Description

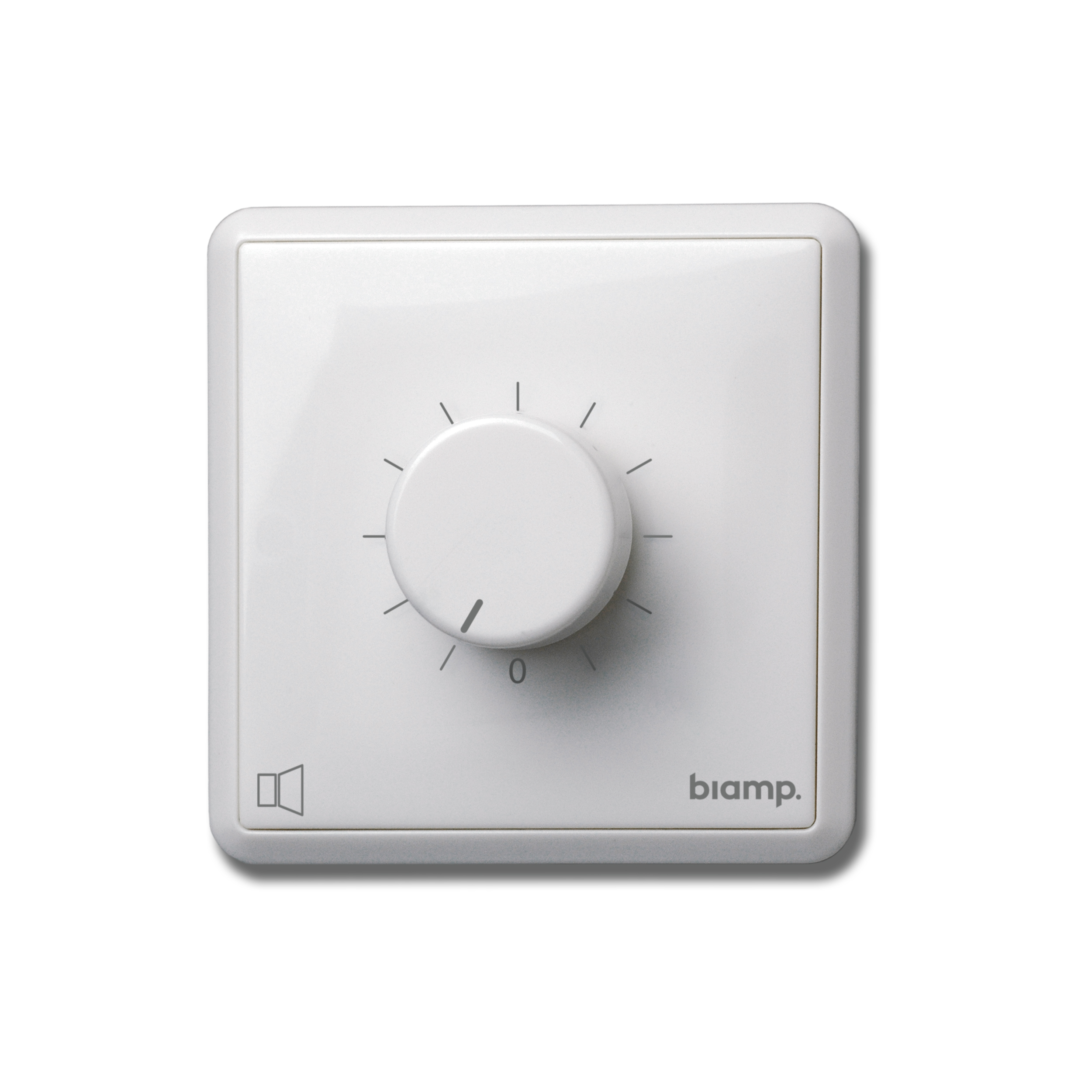

The Apart Audio E-VOL20 is a 100V volume panel, which can handle a total power of 20 Watts and can be set in 11 different positions. This wall controller is specially designed to handle 24V priority signals. That means you can always play a message, even when the local volume control is set to ‘off’.

Also suitable for evacuation and emergency broadcasting

If the amplifier has a 24V priority output, it will send a 24V signal as soon as the button on the microphone is pressed.

This signal will close the relay on the E-VOL120, allowing the signal to pass through even when the settings are set to ‘off’. This can be very useful for emergency or evacuation broadcast announcements. The E-VOL120 is built on a universal chassis, which can be integrated with Gira, Jung and Euro.

Specifications

• Mono connection
• Suitable for 100V
• Not suitable for low impedance
• Maximum power: 20 Watts
• Setting: 0-11
• 24V relay present
• Mounting with screws
• Connection: euroblock 6-pin
• Maximum cable: 2.5 mm2
• Width: 80mm
• Height: 80mm
• Depth: 50mm
• Weight: 336 grams
