BIA-DAN-1

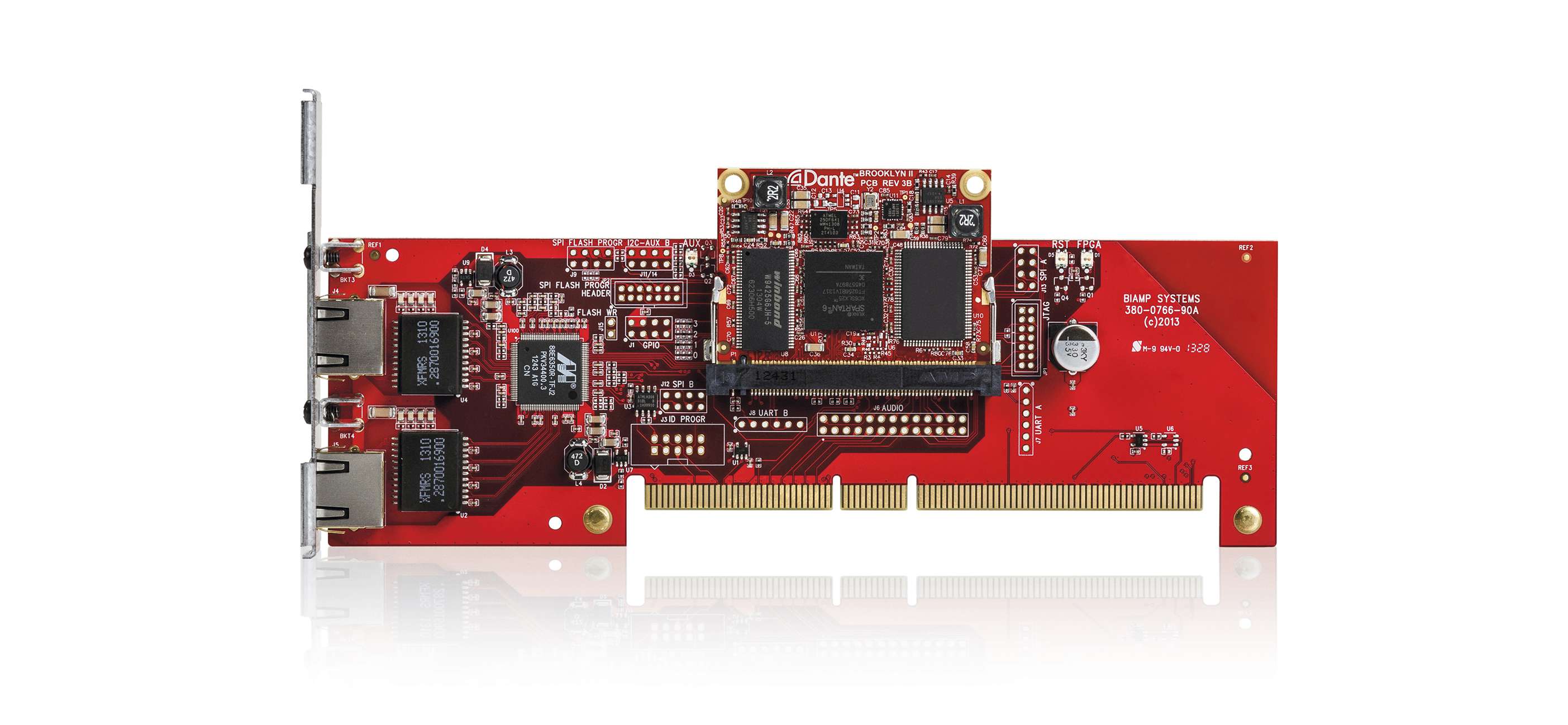

The Tesira DAN-1 is an optional digital audio networking card for Tesira SERVER or SERVER-IO and provides an interface to other audio devices utilizing the Dante networking protocol from Audinate®. The DAN-1 card can be factory installed or installed in the field. Featuring the Brooklyn II module, the DAN-1 allows for up to 64×64 channels of digital audio into and out of a Tesira system.

Key Features

• 64×64 channels of Dante
• AES67-enabled Dante endpoint
• Dual RJ-45 connections for Primary and Secondary
• Up to 32×32 simultaneous flows
• Explicit Dante Input and Output blocks in Tesira Software
• Can be installed in conjunction with AVB-1 and/or SCM-1
• System configuration and control via Ethernet
