Biamp – CMX20DT
$179.30 RRP Inc GST

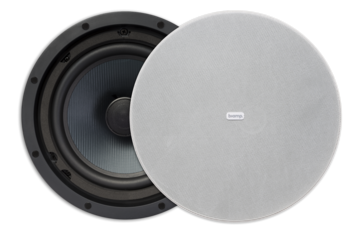

The versatile Commercial CMX20DT 8-inch, 2-way, built-in loudspeaker that produces a deep and warm sound ideal for speech and music. When using the loudspeaker at 16 ohms, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier.
For 70- or 100-volt use, the CMX20DT is equipped with the Quick Fit connector, a handy in and out connector via push terminal for loudspeaker wire connection up to 2.5 mm. The thin edge grill with neodymium magnets makes the CMX20DT the ideal solution for an easy, discreet, décor-friendly installation.
This loudspeaker can be painted in any available RAL color.
GENERAL | |
Depth | 3.4 inches (87 mm) |
Diameter | Bezel Diameter: 9.8 inches (250 mm) Cutout Diameter: 8.8 inches (223 mm) |
Weight | 3.2 lbs (1.45 kg) |
POWER | |
Power | 50W Cont. 200W Peak |
LOUDSPEAKER | |
Loudspeaker Type | Two-way 8-inch thin edge 70V/100V ceiling loudspeaker |
Operating Range | 50 Hz – 20 kHz |
Transformer | 70V: 20W, 10W, 5W, 2.5W 100V: 20W, 10W, 5W |
Sensitivity | (1W/1m) 88 dB |
Dispersion | 180° conical |
Drivers | LF 1 x 8″ enforced polypropylene HF 1 x 1″ |
AUDIO | |
Impedance | 16Ω |
Maximum Output | 108 dB 114 dB Peak |
COMPLIANCE | |
Environmental Ratings | IP50 |
