Biamp

BIA-CM20DT

Commercial – CM20DT

$156.20 RRP Inc GST

Quantity

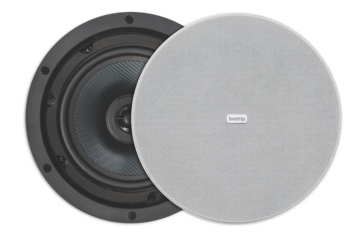

Biamp CM20DT White

6.5″ two-way loudspeaker (BIA-CM20DT)



Description



6.5″ two-way thin edge design ceiling speaker 100-70 volt / 20 watts, 16 ohms / 60 watts, white, with basket integrated neodymium magnets for a perfect seal, removable logo and quick fit push connector



Features



• 2-Way Low impedance loudspeaker

• 6.5″ Polypropylene cone Woofer, 1″ Tweeter

• 16 Ohm Impedance; Dust resistant (IP50 rating)

• 70V transformer power taps on 20 – 10 – 5 – 2.5 watts

• 100V transformer power taps on 20 – 10 – 5 watts

• High quality ABS plastic housing & Paintable steel grille



Specifications



outside diameter 210 mm depth 80 mm
cutout 186 mm loudspeaker system 2-way
woofer size 6.5 inch woofer cone material polypropylene
tweeter size 1 inch mounting system 3 screws
100V transformer power taps 20 – 10 – 5 watts 70V transformer power taps 20 – 10 – 5 – 2.5 watts
impedance 16 ohms low impedance dynamic power 60 watts
SPL 1W/1m 86 dB max SPL 1m 104 dB
frequency response 60 – 20K Hz main construction material ABS plastic
grille main material steel IP rating 50
applicable low impedance yes applicable in 100V yes
Vertical dispersion angle 1000 Hz 180° Net weight product 1.24 kg
SKU BIA-CM20DT Categories , , , ,
