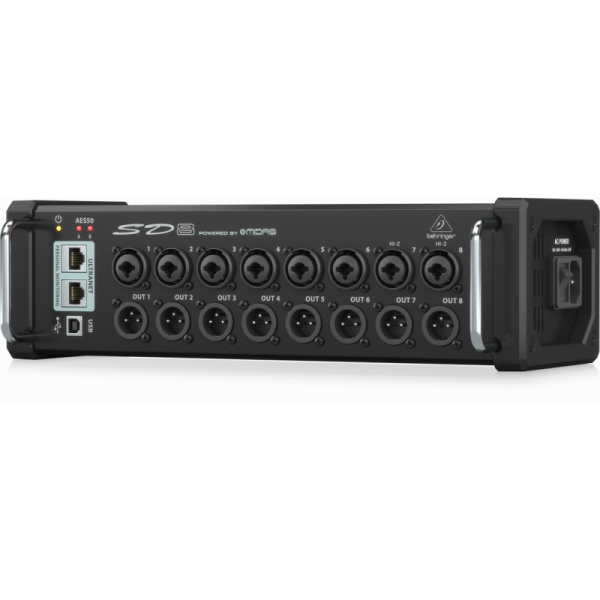

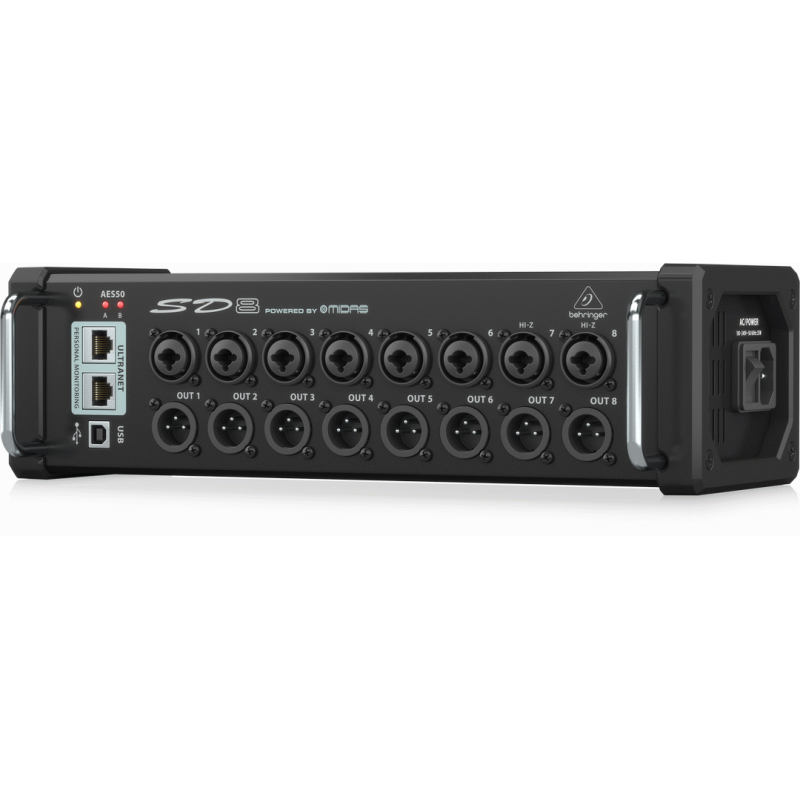

Behringer SD8 Digital Snake I/O Box w/ 8 MIDAS Preamps

Description

Behringer’s SD8 is an extremely versatile 8 x 8 digital stage box solution with remote controllable MIDAS-designed mic preamps, KLARK TEKNIK’s AES50 connectivity and a wealth of other professional grade features – all at a price anyone can afford! Built tough enough to withstand the rigors of the road, the SD8 connects to FOH with a single, inexpensive Cat 5e cable. Now you can have the missing link between the stage and FOH at a fraction of the cost of competing systems – and they back it with a comprehensive warranty program.

Digital mixing has revolutionized virtually everything in the live entertainment production workflow. Now they’ve come up with the perfect solution for connecting the onstage talent with your Front of House (FOH) console and the rest of the world. The ultra-cool and ultra-affordable SD8 Stage Box!

The SD8 provides 8 MIDAS-designed remote-controllable mic preamps, 8 balanced analog XLR returns at the stage end, plus an integrated 2-port ULTRANET distribution hub for direct connection to our P16-M personal monitor mixers – without any additional hardware required. Plus the SD8 is extremely compact and comes with rugged protective bumpers, so you can toss them directly on stage wherever you need them. The best part – all it takes is a single Cat 5e cable per stage box. And If you need more inputs, or just want to keep your cable runs short and tidy, putting an SD8 at stage front and another behind the drum riser gives you an additional 8 inputs for drum and guitar/ bass amp mic’ing.

When used as part of a complete X32 system, as many as three SD8 Stage Boxes can be cascaded via the built-in AES50 ports to provide up to 24 bidirectional inputs and 24 balanced XLR outputs. An onboard ULTRANET distribution hub provides power and 16 channels of audio to 2 BEHRINGER POWERPLAY P16-M personal monitor mixers per SD8, all via inexpensive Cat 5e cabling – and without any additional hardware. Two of the programmable inputs are also compatible with Hi-Z sources, so you can connect keyboards, acoustic and bass guitars, etc., with no DI box required. The SD8 also features a USB port for fast and easy system updates via your PC.

BEHRINGER is proud to incorporate MIDAS designed mic preamps for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about MIDAS’ amazing legacy by visiting their extensive website.

The SD8 Stage Box is a studio/live sound engineer’s dream come true. Setup is extremely easy, with virtually all parameter control taking place at the console – including the award-winning MIDAS-designed mic preamps, +48 V phantom power, destination routing, etc. Just put the SD8 where you want it, run a few Cat 5e, mic and instrument cables – and head for the console. The SD8 makes setting the stage up virtually foolproof!

The SD8 features 8 XLR balanced outputs, allowing you to connect to your amp racks, active loudspeakers and monitors. Thanks to its reference-class Cirrus Logic* 24-bit converters, SD8’s digital operation eliminates even the slightest possibility of Radio Frequency Interference (RFI) and crosstalk. You get ultra-pristine audio performance, no matter your application – something unheard of in this class!

Features

• I/O Stage Box with 8 Remote-Controllable MIDAS Preamps, 8 Outputs, AES50 Networking and ULTRANET Personal Monitoring Hub
• 8 MIDAS-designed, fully programmable mic preamps
• 8 analogue, servo-balanced XLR outputs
• AES50 network ports featuring KLARK TEKNIK’s SuperMAC networking capability
• 2-port ULTRANET distribution hub for powered connection of 2 BEHRINGER P16-M personal monitoring mixers
• Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability
• Rack ears and protection bumpers included for installed and mobile applications
