| ELECTRICAL
9 to 30 VDC, 12 to 24 VAC, 6 Watt max.
2.1mm barrel connector
ETHERNET
10/100Mbps auto,
RJ-45 connector with integrated Link/Activity LED
Protocols: TCP/IP, UDP, RTP, SIP, DHCP,
|
ANALOG OUTPUT
Line level output, 40..60 Ohm output impedance on RCA and 1/8″ headphone jack. Output level software controllable
Full scale output voltage: 5.6 dBu, 4 Vpp
Frequency response (-3dB) 19Hz ..22kHz *
Dynamic range 87 dB
SNR/THD -87 dB, <0.05%
AUDIO FORMATS
MP3 CBR/VBR, up to 320kbps, 8..48kHz sample freq.
AAC, AAC plus, AAC-HE (AAC plus V2)
WMA (up to version 9), Ogg Vorbis
PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
G.711, uLaw, aLaw (sample rates same as PCM) |
DISCRETE I/O
1 NO relay contact, 24V 0.5A (110&120 models only)
RS-232 INTERFACE
300..230’400 Baud asynchronous, tunneling or local control
DISPLAY
Backlit LCD, 2×16 chars (110&120 models only)
IR INTERFACE
IR via serial port, built-in IR receiver (110&120 models only)
IR remote control included with Exstreamer 110 & 120
MECHANICAL
Aluminum case, 250g, rack and wall mountable using accessories |
DIMENSIONS (W X H X D)
108x38x78.7mm (4.25×1.5×3.1 inch)
MODEL COMPARISON
Model 100 Memory USB, IR use kit
Model 105 Memory MicroSD, IR use kit

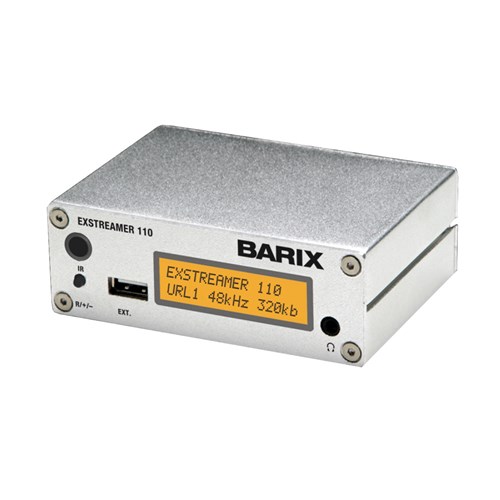

Model 110 Display 2×16, Memory USB, Relay
Model 120 Display 2×16, Memory MicroSD, Relay
MTBF
Calculated acc. MIL217F at 25°C
Exstreamer 100 min. 480 000h
Exstreamer 105 min. 460 000h
Exstreamer 110 min. 450 000h
Exstreamer 120 min. 430 000h
* depends on used codec, best results @48kHz PCM
** high quality A/D supports only certain sample rates |
