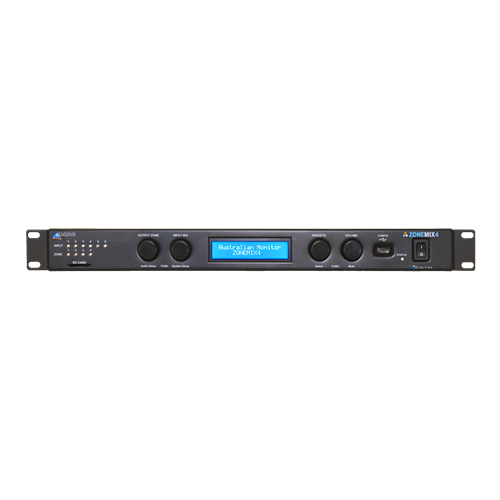

Australian Monitor ZONEMIX4 Zone Mixer and Paging system 4 mono or stereo zone outputs (AUS-ZONEMIX4)

Australian Monitor – ZONEMIX4 Zone Mixer – 2 x Mic/Line – 4 x Line Inputs – 4 x Output

$1,800.00 RRP Inc GST

Quantity

ZONEMIX4

Zone Mixer and Paging system 4 mono or stereo zone outputs





Description

The ZONEMIX4 provides a 4 zone mixing and paging solution featuring USB, Ethernet and RS232 connectivity.
It features 2 Mic/Line and 4 line level stereo inputs which can be independently mixed to any output zone. An additional local audio input can also be added to each zone using audio wall panel inputs.

WP10WP4R and WPVOL wall controllers provide in-zone control of various ZONEMIX functions. Paging capabilities can be added using the ZMPS paging station with a total of 16 stations supported. Additional audio inputs can be added such as the WPBT Bluetooth Receiver and the WPML Mic/Line audio input wall panel.

Software features of the ZONEMIX include a miniDSP, tone generator, message player, priority control, programmable I/O and an in-built scheduler.

Features

• 4 stereo or mono zone outputs
• 2 Mic/line and 4 stereo line inputs plus 1 local input per zone
• USB, Ethernet and RS232 connectivity
• mini DSP – Filters, Tone Control, Delay, Compressors/Limiters
• Built-in Tone Generator, Message Player and Scheduler
• Multi-stage priority control
• 4 general purpose inputs/outputs
• Supports up to 16 ZMPS Paging Stations, 16 WP10, WP4R and WPVOL wall panels
• Supports up to 4 local inputs such as WPBT, WPML or WPXLR
• ZONEMIX PC control software free via download

Accessories



  ZMPS
Paging Microphone
8 zone control
  WP10-W
Remote source and volume control
White
  WP4R-W
Remote source and volume control
White
  WPVOL-W
Remote volume control
White
  WPBT-W
Bluetooth® Audio Receiver
White
  WPML-W
Audio Input Wall Panel
White



____________________________________

DOWNLOADS – Guides and Software

ZONEMIX Overview

ZONEMIX Brochure

ZONEMIX Quick Start Guide

ZONEMIX Manual

ZONEMIX Wiring Guide

ZONEMIX Scheduler Manual

ZONEMIX Control Software V1.3.0 (WIN) “ALWAYS CHECK FOR LATEST VERSION”

ZONEMIX Control Software Previous Versions

____________________________________

Specifications



Zones 4 Stereo or Mono Paging Stations Connected 16 (minimum)
Program Inputs 2 MIC or Line. 4 Stereo Paging Station P/N ZMPS
Local Inputs 1 per zone Remote Source Control WP10 or WP4R or WPVOL
Tones Yes Mounting 1RU
Input Voltage 100-240Vac 50-60Hz Warranty 5 years
Product Dimensions
(W x D x H)
484mm x 160mm x 44.5mm Shipping Dimensions
(W x D x H)
541mm x 281mm x 111mm
Net Weight 2.4 Kg Shipping Weight 3.2 Kg
GTIN EAN 932338302063
