Australian Monitor

AUS-ZMPS

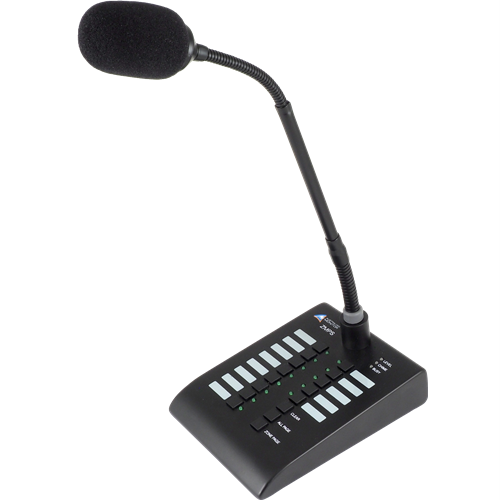

Australian Monitor – ZMPS Zone Paging Microphone 13 Programmable Buttons

$600.00 RRP Inc GST

Quantity

ZMPS

Paging Microphone 8 zone control



PROGRAMMABLE BUTTONS

The ZMPS has 13 programmable buttons which can be configured, via the ZONEMIX PC Control Software, to the following functions,
• Single zone select
• Group zone select
• Pre-recorded announcement playback

PRE-RECORDED ANNOUNCEMENTS

The ZMPS can trigger pre-recorded announcements from the ZONEMIX SD card slot.
Simply place WAV audio file announcements on an SD card and insert it into the ZONEMIX.
The files can then be selected in the PC Control Software and assigned to a button on a ZMPS paging station.

Zone selection can be pre-programmed with the announcement for single button triggering.
Alternatively, for announcement playback to changing zones, the operator can select the zones before triggering the announcement.

__________________

ZMPS-Manual

__________________

Description



The ZMPS paging station is a programmable paging front end for the ZONEMIX system. Featuring a slimline gooseneck paging microphone and the ability to page any single zone, combination of zones or All Call.

The ZMPS can also trigger pre-recorded announcements from an SD card on the ZONEMIX system for recurring announcements.

LED indication provides the user with visual feedback of the zones being paged, chime playback and if the zone selected is busy.

The ZMPS also has ample button label space, a rear microphone gain control and is connected to the ZONEMIX system via a low cost CAT5 cable.



Features



• Slimline gooseneck microphone
• 13 programmable buttons
• Each button can be programmed to perform single zone selection, group zone selection or trigger pre-recorded message playback
• Internal limiter to guarantee voice clarity
• Rear panel gain adjustment
• Connects via low cost Cat 5 cabling



Specifications



Zones Up to 8 Zone Paging Stations Connected N/A
Program Inputs N/A Paging Station P/N ZMPS
Local Inputs N/A Remote Source Control N/A
Tones N/A Mounting Table
Input Voltage 24VDC Warranty 5 years
Product Dimensions
(W x D x H)		 132mm x 174mm x 350mm Shipping Dimensions
(W x D x H)		 350mm x 200mm x 145mm
Net Weight 1.0 Kg Shipping Weight 1.5 Kg
GTIN EAN 9323383020610
SKU AUS-ZMPS Categories , , , ,
