AUS-XRS10ODV

$689.00 MSRP inc.GST

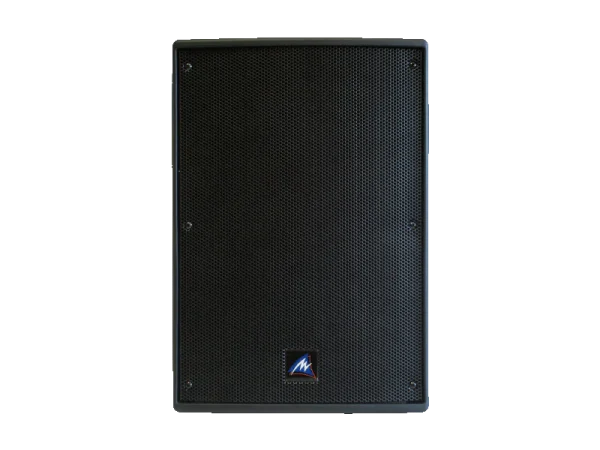

Australin Monitor – XRS10ODV Speaker – Surface – 150 Watt 100 Volt – IP44

Australian Monitor XRS10ODV 10 inch Passive Speaker IP44 Rated, 250W, Black

The Australian Monitor XRS10ODV passive and powered injection moulded speaker enclosures are renowned for their excellent sound quality, reliability and excellent value for money. The latest addition to the XRS range is the XRS12ODV, which features an IP44 rating for outdoor use as well as a multi tap constant voltage transformer for use in larger articulated constant voltage systems such as sporting arenas. The Australian Monitor XRS10ODV outdoor/voltage speaker brings the legendary XRS sonic performance to the weather proof and constant voltage speaker market.

• 10″ Woofer, 1.5″ HF compression driver
• 90°x 90° dispersion pattern
• Inbuilt transformer with tappings at 37.5, 75 and 150 watts @ 70V/100V and 8 ohm bypass.
• Frequency response 55 Hz – 18 kHz
• Max SPL 125 dB
• Sensitivity at 1w/1m is 95 dB
• IP44 rated
• Captive flylead
• 6 x M8 eye bolt points

Specification

Form Factor Box Max Continuous Power 250W
Tappings 150W-75W-37.5W-8 Ohm Max Program Power 500W
IP Rating IP44 Max Peak Power 1000W
EASE Model No SPL 1W/1m 95dB
Powered Passive Max SPL RMS 119dB
Driver Diameter 10″ & 1.5″ Max SPL Peak 125dB
Colour Black Frequency Response (-3dB) 55Hz – 18kHz
Warranty 5 years Dispersion 90 x 90deg
Product Dimensions
(W x D x H)
321mm x 308mm x 464mm Shipping Dimensions
(W x D x H)
375mm x 355mm x 535mm
Net Weight 16.5 Kg Shipping Weight 18.5 Kg



AUS XRS10ODV Manual
