Australian Monitor – WPVOL-B Zonemix Wallplate – Volume Control Level Indication – Muting – Black (AUS-WPVOL-B)

Australian Monitor – WPVOL-B Zonemix Wallplate – Volume Control Level Indication – Muting – Black

$200.00 RRP Inc GST

Quantity

WPVOL-B

Remote volume control Black

Description

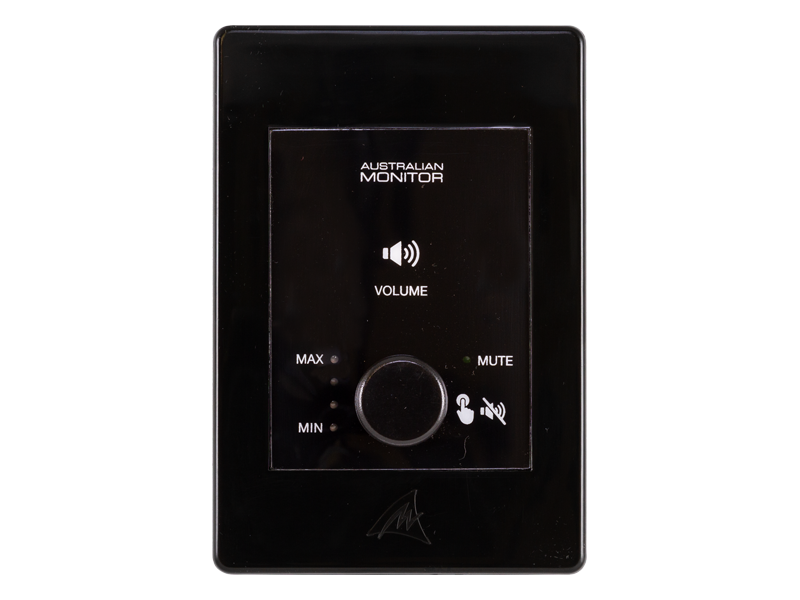

The WPVOL wall panel is a dedicated volume control knob for use with the ZONEMIX system.

LED indication provides the user with visual feedback of volume and mute status.

Connection to the ZONEMIX system is via Cat5 cabling.

The wall panel can also be optionally customized using HPM® VIVO™ cover plates to create a unique look for each installation.



Features



• Volume control knob with mute push button
• Volume level meter

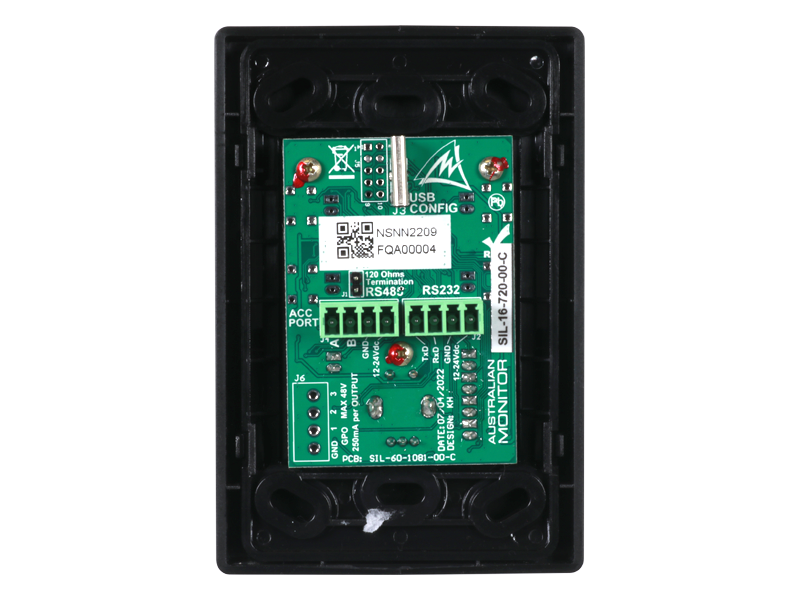

• Euroblock cable termination
• Customizable color scheme using HPM® VIVO™ cover plates
• Also available in White, WPVOL-W

Specifications



Zones N/A Paging Stations Connected N/A
Program Inputs N/A Paging Station P/N N/A
Local Inputs N/A Remote Source Control N/A
Tones N/A Mounting Wall
Input Voltage 24VDC Warranty 5 years
Product Dimensions
(W x D x H)		 Shipping Dimensions
(W x D x H)		 156mm x 132mm x 101mm
Net Weight Shipping Weight 0.2 Kg
GTIN EAN 9323383020450
SKU AUS-WPVOL-B Categories , , , ,
