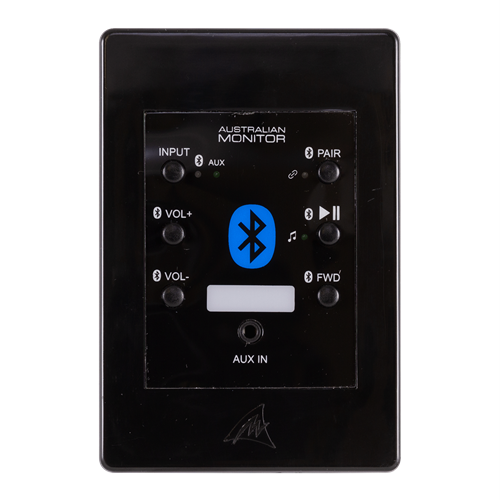

Australian Monitor – WPBT-B Zonemix Wallplate – Bluetooth Assignable Name and PIN – Black
$305.00 RRP Inc GST
The WPBT is a programmable Bluetooth® audio receiver and auxiliary input wall panel. Featuring Bluetooth pairing and media controls as well as a source selector.
Audio can be configured to output either stereo or mono balanced audio which can be integrated into any audio system.
The WPBT can be programmed via a USB-C connector and Bluetooth PC Control Software. The software allows the customization of broadcast name, PIN number, security features and output mode.
An optional WP-BREAKOUT box can provide power to the WPBT and convert the audio to unbalanced audio.
• Bluetooth® v5.1 Audio Receiver
• Auxiliary 3.5mm Input Socket
• Programmable name, PIN and security features via Bluetooth PC Control Software
• USB-C programming connector
• Dedicated Bluetooth® media controls
• Stereo or mono balanced audio output
• Euro block cable termination
• Customizable color scheme using HPM® VIVO™ cover plates
• Also available in White, WPBT-W
Output Channels | Stereo or Mono | Frequency Response | N/A |
Audio Formats | Balanced Audio | THD+N | < 0.1% |
Input Voltage | 15-24Vdc | Signal to Noise Ratio | > 80dBA |
Mounting | Wall | FM Frequencies | N/A |
Warranty | 5 years | DAB+ Frequencies | N/A |
Product Dimensions (W x D x H) |
121mm x 82mm x 33mm | Shipping Dimensions (W x D x H) |
156mm x 132mm x 101mm |
Net Weight | 85 grams | Shipping Weight | 0.2 Kg |
GTIN EAN | 9323383020511 |
