Australian Monitor

AUS-QFC8CS

Australian Monitor – QFC8CS Speaker – Flush – 30 Watt – 8 Inch 100 Volt – Cutout 248mm – White

$105.00 RRP Inc GST

Quantity

QFC8CS

Ceiling Speaker 30W 8 inch coaxial



Description

The all new QuickFit coaxial series of ceiling speakers features 3 new models, each model comprises a 2 way coaxial driver producing high SPL and intelligibility. The frameless grills provide a modern sleek look sure to please end users, consultants and architects alike. If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL. Recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, rubs, Restaurants and many other commercial applications. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH

Features

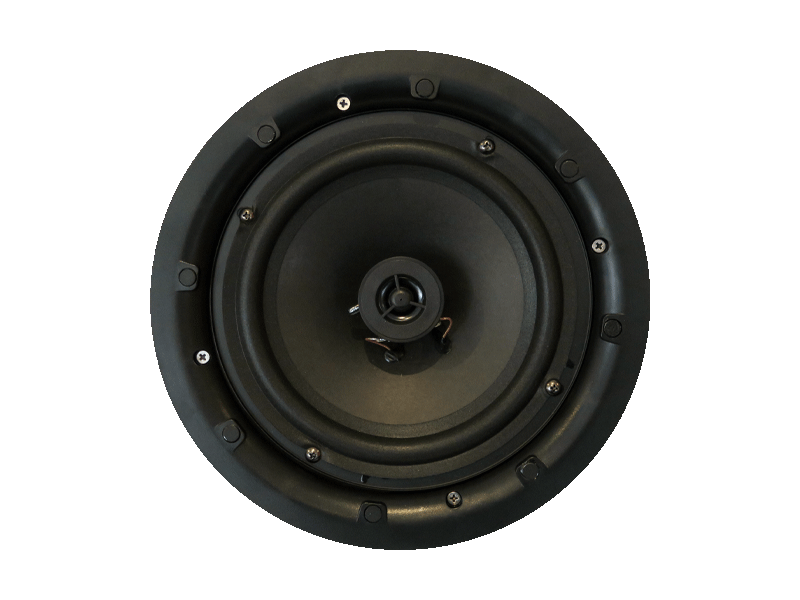

• 8 inch coaxial high powered driver

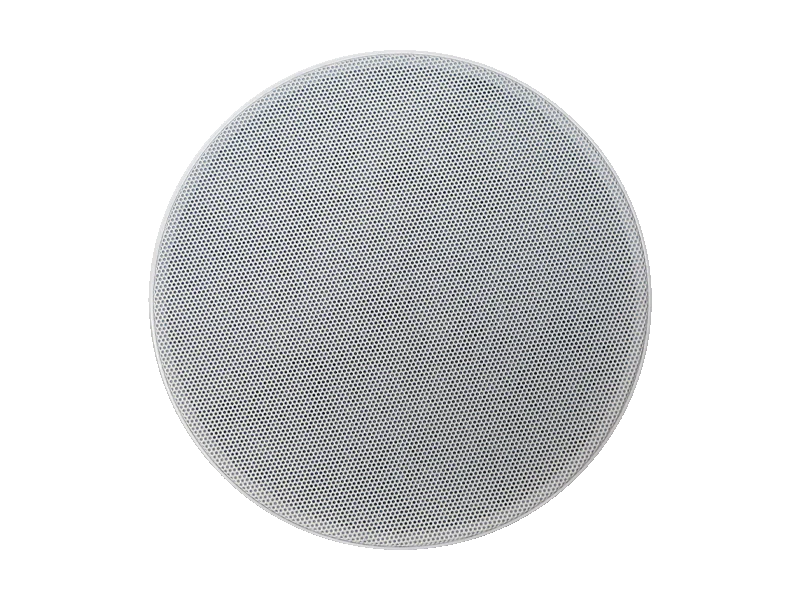

• QuickFit white frameless powder coated steel grill
• 3.75, 7.5, 15, 30 watt taps @ 100V
• Evac. capacitor as standard
• Optional black grill available (QFC8GRILLB)

  QFC8GRILLB
Speaker Grill
Suitable for QFC8CS

QFC8CS Brochure

QuickFit Family Brochure

QFC8CS Specification Sheet

QFC8CS Cutout Template



Specifications



Form Factor Ceiling Max Continuous Power 30W
Tappings 30W-15W-7.5W-3.75W-1.87W Max Program Power 60W
IP Rating No Max Peak Power 120W
EASE Model Yes SPL 1W/1m 94dB
Powered Passive Max SPL RMS 109dB
Driver Diameter 8″ & 25mm Max SPL Peak 115dB
Colour White (RAL 9010) Frequency Response (-3dB) 60Hz – 20kHz
Warranty 5 years Dispersion 100deg
Product Dimensions
(W x D x H)
282mm x 85mm Shipping Dimensions
(W x D x H)
105mm x 287mm x 287mm
Net Weight 1.6 Kg Shipping Weight 1.9 Kg
GTIN EAN 9323383019430

How to wire – 100 /70 volt line speakers
