Australian Monitor

AUS-QFC5CS

Australian Monitor – QFC5CS Speaker – Flush – 10 Watt – 5 Inch 100 Volt – Cutout 178mm – White

$82.00 RRP Inc GST

Quantity

QFC5CS

Ceiling Speaker 10W 5 inch coaxial



Description



The all new QuickFit coaxial series of ceiling speakers features 3 new models, each model comprises a 2 way coaxial driver producing high SPL and intelligibility. The frameless grills provide a modern sleek look sure to please end users, consultants and architects alike. If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL. Recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, rubs, Restaurants and many other commercial applications. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH



Features

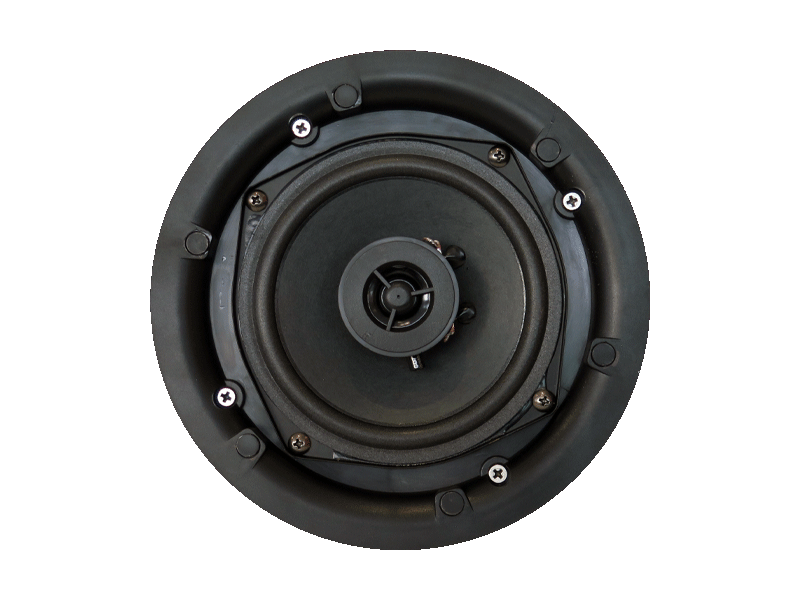

• 5 inch coaxial high powered driver

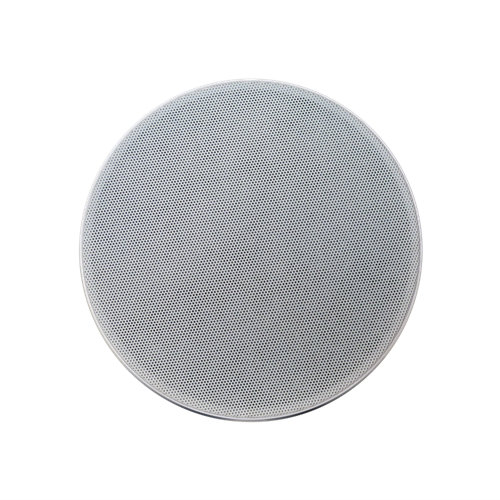

• QuickFit white frameless powder coated steel grill
• 1.25, 2.5, 5, 10 watt taps @ 100V

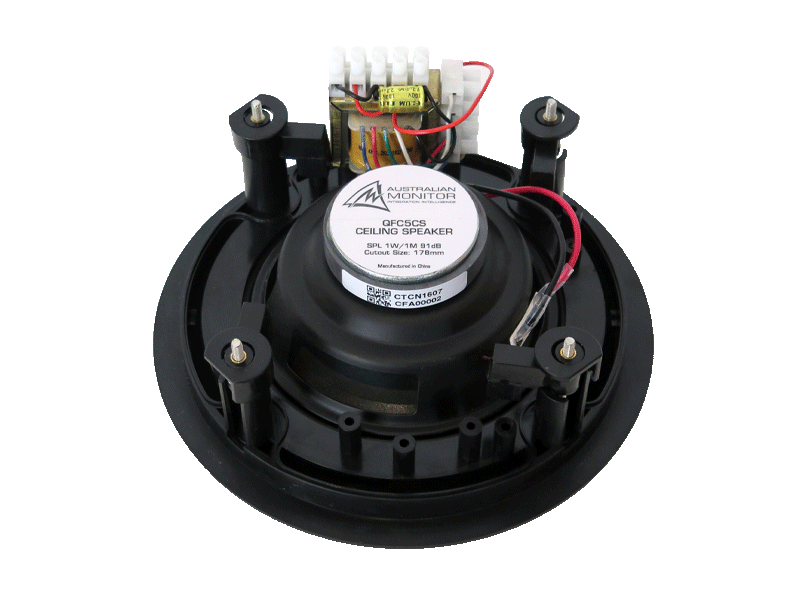

• Evac. capacitor as standard
• Optional black grill available (QFC5GRILLB)



Specifications



Form Factor Ceiling Max Continuous Power 10W
Tappings 10W-5W-2.5W-1.25W-0.65W Max Program Power 20W
IP Rating No Max Peak Power 40W
EASE Model Yes SPL 1W/1m 91dB
Powered Passive Max SPL RMS 101dB
Driver Diameter 5″ & 25mm Max SPL Peak 107dB
Colour White (RAL 9010) Frequency Response (-3dB) 80Hz – 20kHz
Warranty 5 years Dispersion 100deg
Product Dimensions
(W x D x H)
205mm x 72mm Shipping Dimensions
(W x D x H)
90mm x 210mm x 210mm
Net Weight 0.9 Kg Shipping Weight 1.1 Kg
GTIN EAN 9323383019416
