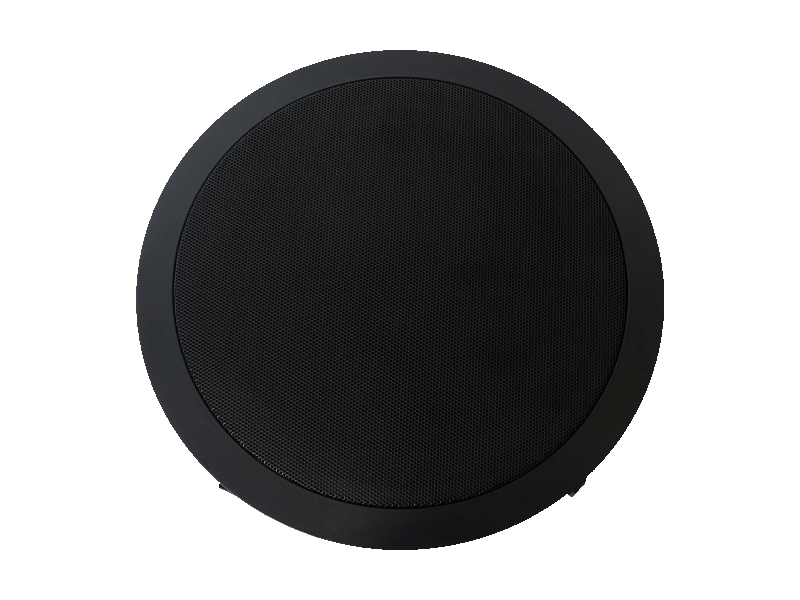

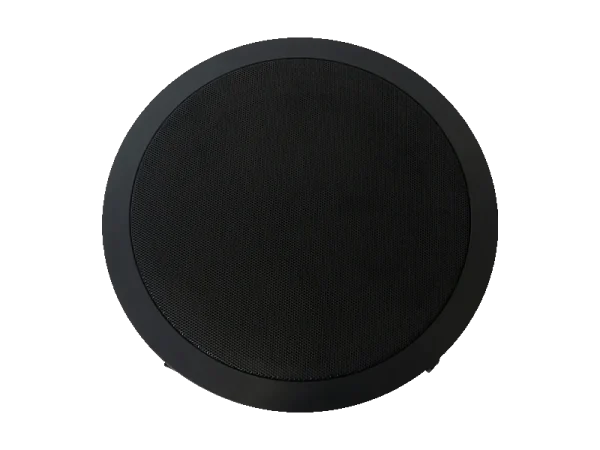

Australian Monitor – QF8CSB Speaker – 8 Inch – 15 Watt 100 Volt – Black
$79.00 RRP Inc GST
The Australian Monitor QuickFit range of ceiling speakers has been an industry staple for over a decade. This refreshed series of QuickFit dual cone flush mount ceiling speakers are now better than ever. Offering improved voicing of these great products, refined toggle mounting system, and including all the information you need at your fingertips with a new cut out template providing wiring, wattage tapping and cut out information. Together these new and improved features provide an even better installation experience.
The QuickFit dual cone series QF5CS, QF6CS, QF6WRC, QF8CS and QF8CSB provide cost effective solutions for a myriad of commercial audio applications such as education, shopping centres, common areas, RSLs, clubs, restaurants, fire evacuation systems and many more applications that requires a reliable high quality affordable commercial ceiling speaker product. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.
EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH
Form Factor | Ceiling | Max Continuous Power | 15W |
Tappings | 15W-7.5W-3.75W-1.87W-0.93W | Max Program Power | 30W |
IP Rating | No | Max Peak Power | 60W |
EASE Model | Yes | SPL 1W/1m | 90dB |
Powered | Passive | Max SPL RMS | 102dB |
Driver Diameter | 8″ | Max SPL Peak | 108dB |
Colour | Black (RAL 9005) | Frequency Response (-3dB) | 80Hz – 20kHz |
Warranty | 5 years | Dispersion | 100deg |
Product Dimensions (W x D x H) |
280mm x 80mm | Shipping Dimensions (W x D x H) |
105mm x 280mm x 285mm |
Net Weight | 1.4 Kg | Shipping Weight | 1.5 Kg |
GTIN EAN | 9323383019478 |
