AUS-QF6WRC

$139.00 MSRP inc.GST

Australin Monitor – QF6WRC Speaker – Flush – 12 Watt 100 Volt – 6 Inch – IP55

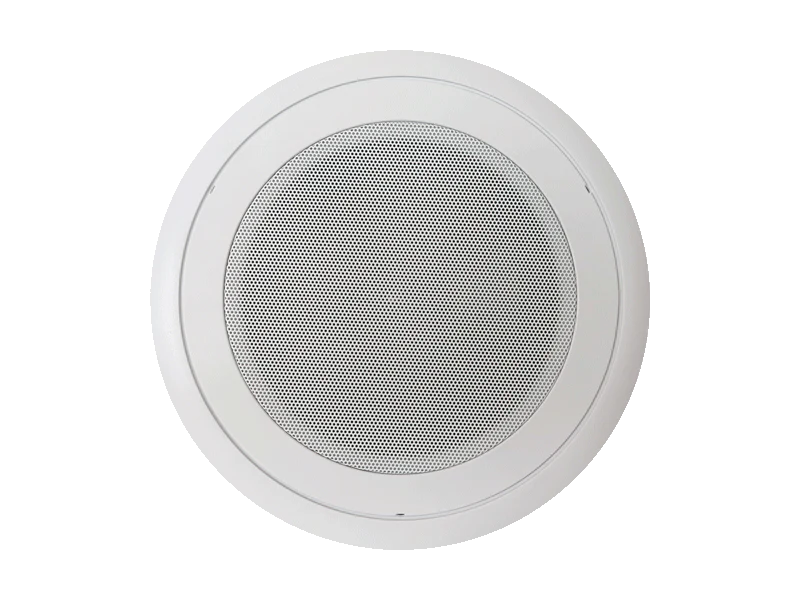

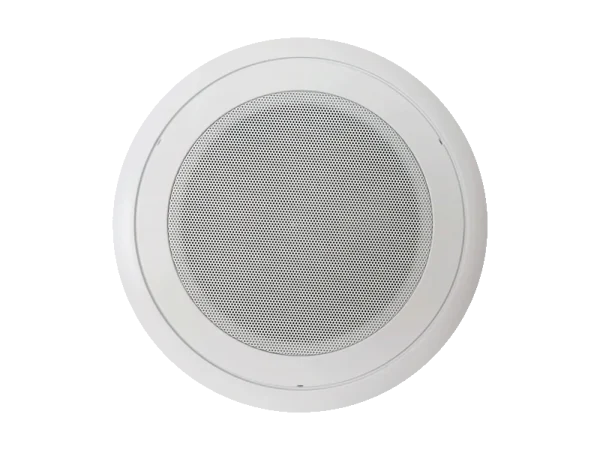

Australian Monitor QF6WRC Ceiling Speaker 12W 6 inch Water Resistant

The Australian Monitor QF6WRC ceiling mount speaker is designed to provide a water resistant option to complement the QuickFit range of Australian Monitor ceiling speakers.

The perfect solution for change rooms, toilets, wash rooms,swimming pools and other wet areas.

EASE GLL files simulation files are available for QuickFit ceiling speakers. EASE is a registered trademark of AFMG Technologies GmbH

• IEC 529 IP55 rated
• Sealed ABS enclosure with glanded cable and cable tail
• 6 inch doped full range dual cone speaker driver
• Powder coated aluminum grill
• 100V power tappings at 12, 9, 6, 3, 1 watts
• 70V tappings at 6, 4.5, 3, 1.5, 0.5 watts
• Low impedance 12 watts @ 8 ohms
• Evac supervisory capacitor installed

“Weather Resistant” wet speaker suitable for bathrooms, pools spa’s and under outdoor eves C/w grill and supervisory capacitor.

Specification

Form Factor Ceiling Max Continuous Power 12W
Tappings 12W-9W-6W-3W-1W-8 Ohm Max Program Power 24W
IP Rating IP55 Max Peak Power 36W
EASE Model No SPL 1W/1m 92dB
Powered Passive Max SPL RMS 103dB
Driver Diameter 6″ Max SPL Peak 109dB
Colour White Frequency Response (-3dB) 185Hz – 19kHz
Warranty 5 years Dispersion 110deg
Product Dimensions
(W x D x H)
238mm x 138mm Shipping Dimensions
(W x D x H)
Net Weight 1.7 Kg Shipping Weight
GTIN EAN 9323383017504



AUS QF6WRC Manual

AUS QF6WRC Product Brochure
