Australian Monitor

AUS-QF60CS

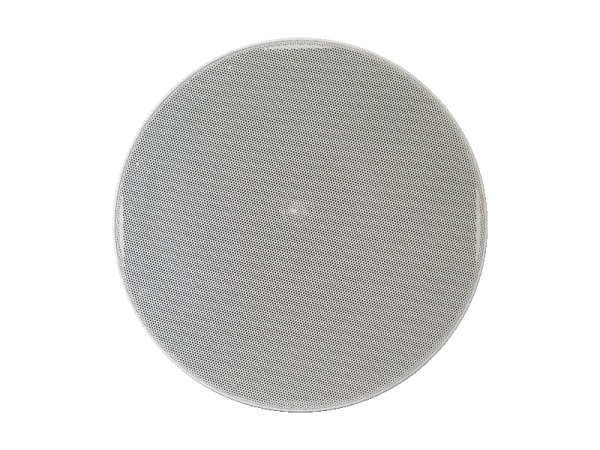

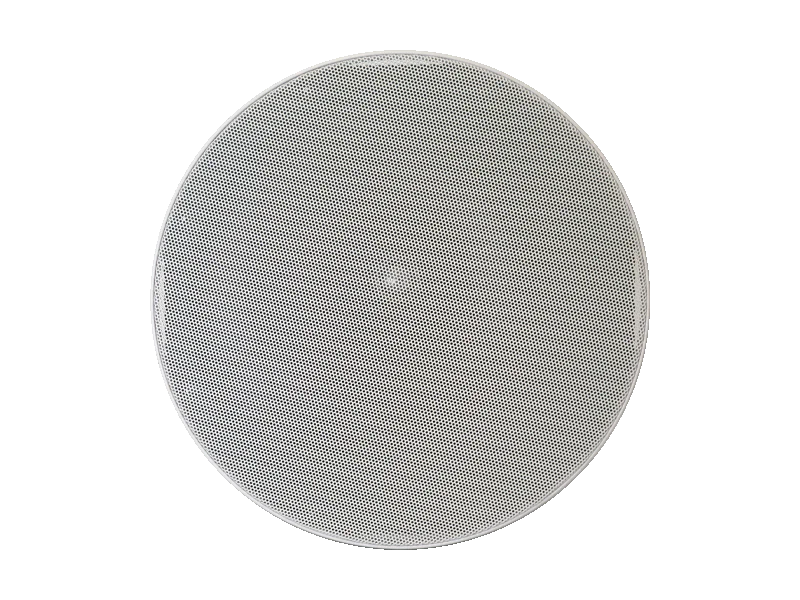

Australian Monitor – QF60CS Speaker – Flush – 60 Watt 100 Volt – White

$290.00 RRP Inc GST

Quantity

QF60CS

Ceiling Speaker 60W sealed back can



Description



When you need more power and solid bass response the QuickFit premium coaxial series of ceiling speakers are sure to exceed expectations. This premium series features two way coaxial drivers producing high SPL and detailed audio reproduction. The frameless magnetic grills allows easy removal of the grill for tapping changes and quick installation. Porting through the front baffle improves bass response and ensures detailed bass definition. The sealed back-can provides isolation in the ceiling space ensuring spill in the ceiling cavity is kept to a minimum.

If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH



Features



• 6 inch & 20mm coaxial high powered driver
• QuickFit white frameless powder coated steel grill
• Sealed steel back can
• 15, 30, 60 watt taps @ 100V
• 60 Watts @ 16 Ohms
• Tile bridge included



Specifications



Form Factor Ceiling Max Continuous Power 60W
Tappings 60W-30W-15W-7.5W Max Program Power 120W
IP Rating No Max Peak Power 180W
EASE Model Yes SPL 1W/1m 90dB
Powered Passive Max SPL RMS 108dB
Driver Diameter 6″ & 20mm Max SPL Peak 114dB
Colour White Frequency Response (-3dB) 85Hz – 20kHz
Warranty 5 years Dispersion 130deg
Product Dimensions
(W x D x H)
257mm x 195mm Shipping Dimensions
(W x D x H)
286mm x 282mm x 220mm
Net Weight 3.7 Kg Shipping Weight 5.0 Kg
GTIN EAN 9323383019492
