Australian Monitor

AUS-QF5CS

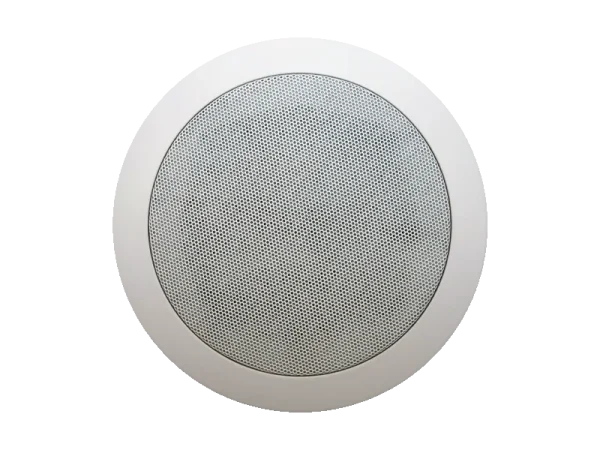

Australian Monitor -QF5CS – Speaker Flush – 5 Inch – 6 Watt – 100 Volt Steel Grille – Cutout 180mm – White

$47.00 RRP Inc GST

Quantity

QF5CS

Ceiling Speaker 6W 5 inch dual cone



The Australian Monitor QuickFit range of ceiling speakers has been an industry staple for over a decade. This refreshed series of QuickFit dual cone flush mount ceiling speakers are now better than ever. Offering improved voicing of these great products, refined toggle mounting system, and including all the information you need at your fingertips with a new cut out template providing wiring, wattage tapping and cut out information. Together these new and improved features provide an even better installation experience.

The QuickFit dual cone series QF5CS, QF6CS, QF6WRC, QF8CS and QF8CSB provide cost effective solutions for a myriad of commercial audio applications such as education, shopping centers, common areas, RSLs, clubs, restaurants, fire evacuation systems and many more applications that requires a reliable high quality affordable commercial ceiling speaker product. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH



Features



• 5 inch dual cone driver
• QuickFit white ABS plastic baffle and powder coated steel grill
• 0.75, 1.5, 3, 6 watt taps @ 100V
• Evac. capacitor as standard



Specifications



Form Factor Ceiling Max Continuous Power 6W
Tapings 6W-3W-1.5W-0.75W-0.38W Max Program Power 12W
IP Rating No Max Peak Power 24W
EASE Model Yes SPL 1W/1m 88dB
Powered Passive Max SPL RMS 96dB
Driver Diameter 5″ Max SPL Peak 102dB
Colour White (RAL 9010) Frequency Response (-3dB) 80Hz – 20kHz
Warranty 5 years Dispersion 100deg
Product Dimensions
(W x D x H)
215mm x 75mm Shipping Dimensions
(W x D x H)
95mm x 215mm x 215mm
Net Weight 0.5 Kg Shipping Weight 1.0 Kg
GTIN EAN 9323383019386
