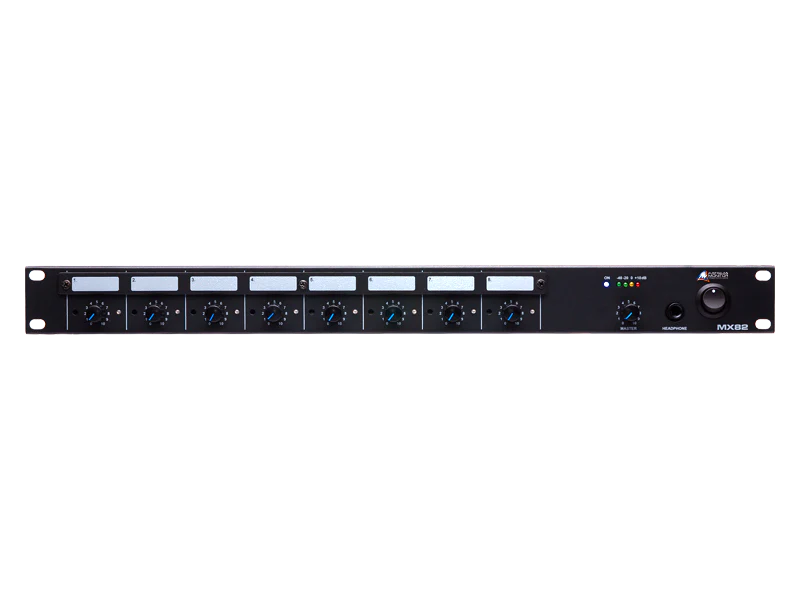

Australian Monitor – MX82

8 Channel Stereo Mixer 4 XLR, 4 RCA inputs

Description

The MX82 is a 1RU stereo mixer that features four mic/line inputs and four stereo inputs.

Each of the four mic/line channels consists of a balanced XLR input switchable between mic and line level, 15dB of gain trim across the mic/line inputs plus individually switchable phantom power (15VDC). The first 4 channels also feature a line level direct output which can be used to feed additional amplifiers, mixers or recording devices.

An internal dip switch allows the first 4 inputs to be routed to the direct output, the master outputs or both. You can also feed the optional tone generator (AMTONE1) to the direct outs if required. Input 1 can also be pre or post master if you require, allowing it to be used as a priority (or emergency) input. Inputs 5-8 are four dedicated stereo RCA aux/line level inputs.

Features

• 4 XLR inputs switchable between microphone and line level, each with direct output
• 4 stereo dual RCA line level inputs. Each input has front panel microphone/line switching (inputs1-4), treble and bass control, +/-15dB of gain trim and dual color status LED indication
• Single master volume control
• Phantom power individually switchable for XLR inputs
• Priority muting via optional muting modules (AMMUTE1 or AMMUTE3). 2 required.
• Remote Volume Controlled Attenuation (VCA) via optional module (AMVCA). 2 required.
• Tone generation via optional module (AMTONE1)
