Flat copper tape applications include:

• • Under floor perimeter loops
  • Under floor Multiloops / Phased Array
  • Can be fitted under most coverings with no effect on the magnetic field.
    – Carpet
    – Vinyl
    – Linoleum
    – Wood
    – Laminate
    – Ceramic & Porcelain Tiles
    – On top of metal decking (requires high power driver and appropriate loop design)

Optional accessories
Printed Warning Tape, PVC Extrusion and Crimps

Installation note
When installed, Ampetronic flat copper tape is not normally visible through carpets and floor coverings. However, if used under particularly thin floor coverings, the line of the tape may be slightly visible. The installer is responsible for confirming the compatibility of all materials before they are used in any project.

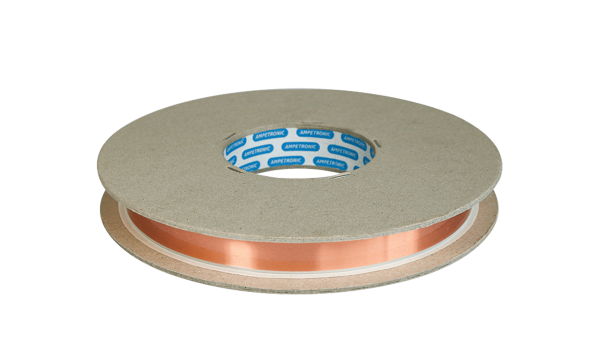

Ampetronic flat copper tape (cable) is the default choice when installing loop cable under floor coverings such as carpet, wood, laminate, tiles or linoleum. The cable will not be visible under most floor coverings and is generally secured to the floor with Printed Warning Tape that alerts tradespeople, such as carpet fitters to it’s presence.

The construction of the cable is copper foil of 0.1mm thickness, covered in bonded Polyester film. Total thickness is 0.25mm (0.01”).

To turn a corner, the tape is folded over. To terminate, tin the end of the tape with a good soldering iron, melting the plastic coat with the solder. Solder on a wire (or the next length of tape) to the copper tape, and insulate with electrical tape.
