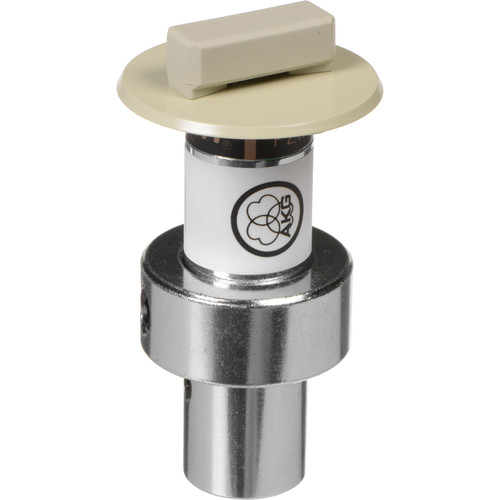

AKG-PZM10

The PZM10, part of the Pressure Zone Microphone® line, is designed for security, surveillance, and conference-table use. The special housing design allows the microphone to be mounted into tables, walls or ceilings easily and inconspicuously.

Using Pressure Zone Microphone® technology, the PZM10 is highly sensitive and delivers a wide and smooth frequency response. Thus the PZM10 is characterized by excellent clarity and a consistent pickup anywhere around the mic.

General Specifications

Audio frequency bandwidth

80 – 20000 Hz

Equivalent noise level

26 dB-A

Sensitivity

2.5 mV/Pa

Signal to Noise

68 dB-A

Recommended load impedance

2000 Ohms

Dimensions

Height

72 mm

Diameter

39 mm

Net Weight

74 g

Design

Finish

off-white

Audio Output

Type

Balanced XLR

Gender

Male

Contacts

3-pin

Powering Interface

Voltage

12 to 48 V

Application

Retail

Device

Boundary Layer Microphone
