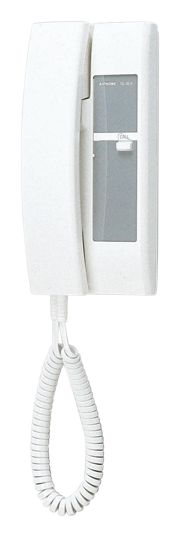

Aiphone – TD-1H/B 1 Call master station handset wall mounting
$179.60 RRP Inc GST
The Aiphone TD-1H-B is a Selective Calling Versatile intercom system, either single-master-master selective. All-master, or Intermixed system can be set up – Full trunkage, semi-private a stationcan join an existing communication – Max. 2 door stations per system, Door release activation – Zone page with or without talkback – Accepts background music – Includes hardware – Requires a 12 Volt D.C. 70mA power supply per station (not inc.) – Distance: 650M w/0.65mm dia. cable – Size: 100 x 210 x 73 mm (WHD)
Power Consumption | 70mA per station |
Type of communication | Handset (full-duplex) |
Door Release Contact | N/O dry contact, 30V AC/DC, 1A (at DE-UR) |
Mounting | Desk mount or surface mount directly to wall or 1-gang box |
Wire Type | 6-cond., overall shield – use Aiphone #822206 |
Wire Distance | Between TD Master Stations: 2,200′(22AWG) 4,800′(18AWG) |
