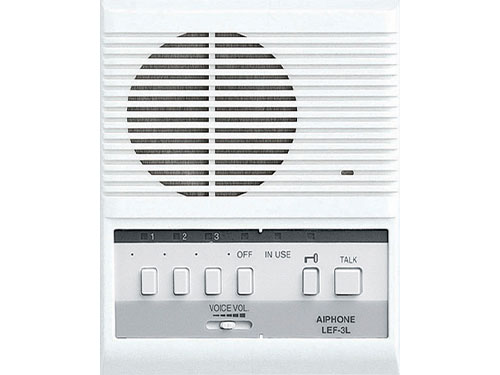

The LEF-3 is a selective calling open voice style master station with the capacity of up to 4 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and substations up to its maximum capacity.

Incoming calls from a sub or door station are annunciated with a momentary electronic mono-tone and an LED, remaining lit for approximately 20 seconds. Communication at the calling master is press-to-talk, release-to-listen. The person at the receiving station speaks hands-free. The person at the master station can selectively call and talk with a person at any other sub or master station in the system. The privacy feature on the master and selected subs prevents eavesdropping from the master station. A call can be received, but communication back to the calling master will be heard only after the privacy button is disengaged.

Features

• Provides internal communication to LEF master stations or LE door stations
• ABS plastic housing
• LED and call-tone indicators

Specifications

• Power Consumption: 300mA
• Type of communication: Push-to-talk (simplex)
• Mounting: Wall or desk mount
• Wire Type: Variable wire types
• Wire Distance: Sub Station to farthest Master Station: 650′(22AWG) 1,600(18AWG)
• Dimensions: 7-1/16″ H x 5-5/8″ W x 2-1/8″
