AIP-LEF-10

$420.66 MSRP inc.GST

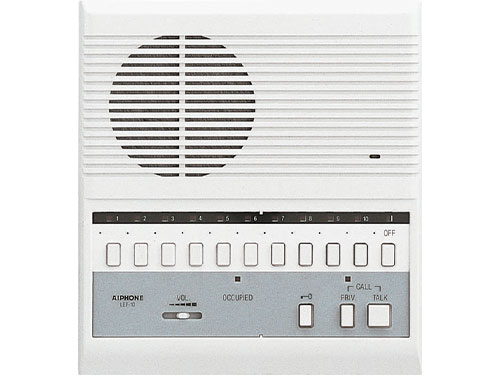

Aiphone – LEF-10 – 10 Call Master

AIPHONE LEF Series – AIP-LEF-10

The Aiphone LEF Series is a selective calling open voice, audio only system with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations, up to its maximum capacity.



Features:

  • 3, 5, and 10-call masters
  • Intermixable system with any number of masters and subs to maximum capacity
  • Selective calling, monitoring, and optional All Call
  • Push-to-talk at master, hands-free reply at called station
  • Call tone and LED annunciation at master
  • Selective door release(w/ RY-PA per door) on LEF 3L/5/10 Call Masters
  • All Call with LEF-10S and all LEF-C masters (requires BG-10C)

Specifications:

Power Source: 12V DC – Use PS-1225UL

Communication: Sub calls in with call-tone and LED, 20 sec. depress the LED selector button, use TALK/LISTEN switch. Master calls in with tone or voice (no LED lit), reply hands-free. To call, depress a selector, and call by voice or tone Chime available with BG-10C.

Communication Output: 500mW

Door release: RY-PA Contact rating: 24V DC, 1A Use 1 RY-PA per door being released

Wiring: Varies by system, see instruction manual or contact technical support
